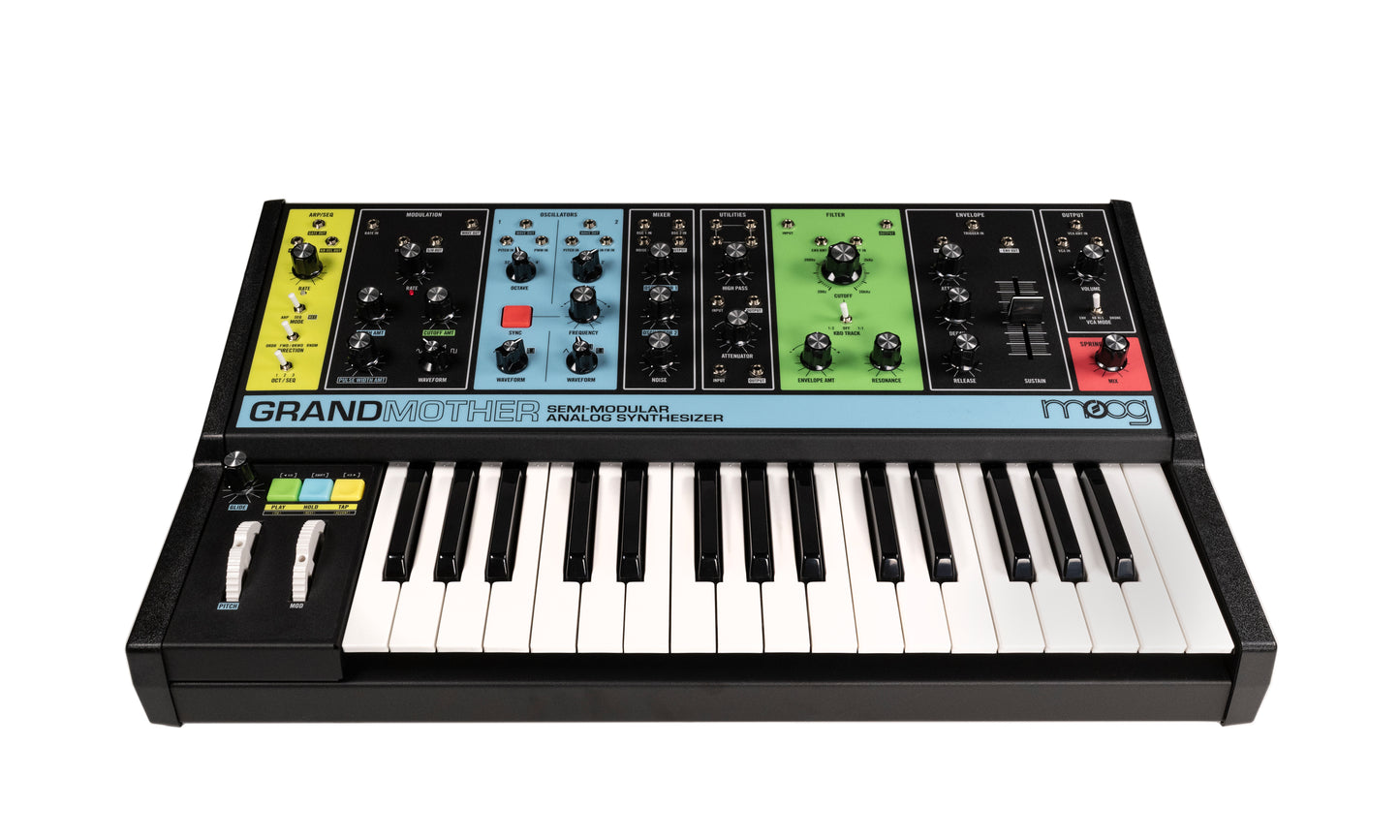

Grandmother Synthesizer

 Grandmother is a semi-modular analog synthesizer with a built-in arpeggiator, sequencer and spring reverb tank. Start playing immediately with “no patching required” then explore an infinite sonic playground with Grandmother’s endlessly reconfigurable front panel. Grandmother’s circuits, spring reverb, and spirit are inspired by the classic Moog Modular Synthesizers, making this instrument a powerful addition to a Mother-32, DFAM or Eurorack modular system.

• 100% analog synthesizer with 32-note Fatar keybed
• Semi-modular design, requires no patching to play
• All normalized connections can be interrupted for full modularity
• Hardware Spring Reverb can be used to process external sounds
• 1/4” External audio input for guitars, drum machines, and more
• Easy to use Arpeggiator and Sequencer
• Store up to 3 sequences with up to 256 notes each
• 2 Analog Oscillators with selectable waveshape and hard sync
• Classic 4-Pole 10Hz-20kHz Ladder filter
• Patchable 1-Pole High Pass filter
• Analog ADSR Envelope Generator
• Analog LFO with audio-rate capabilities
• DIN MIDI In/Out/Thru and USB MIDI
• Patchable bipolar attenuator
• Works with Mother-32, DFAM, Eurorack modular systems and more
• 41 patch points with 21 inputs, 16 outputs and a Parallel-Wired 4-jack Mult

WEIGHT

18 lbs.

DIMENSIONS

23"W x 14 1/4" D x 5 1/2" H

POWER

Included Power Adapter 12V, 2A -100 to 240 Volts AC, 50/60Hz
