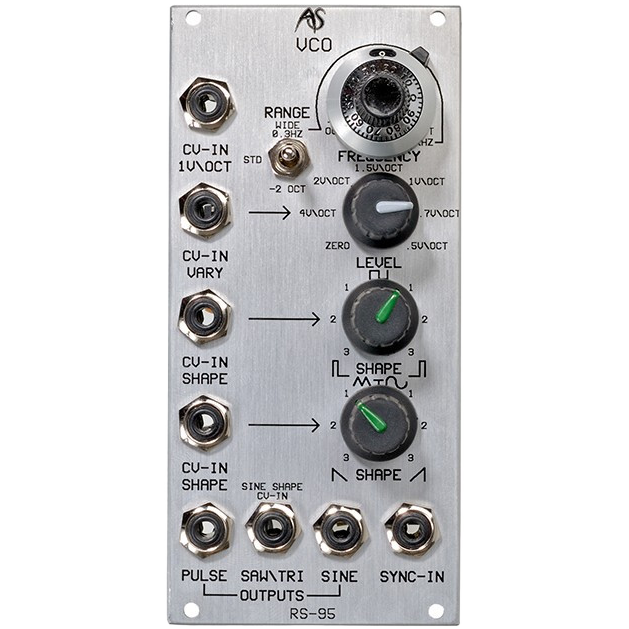

RS-95e VCO

• 12 hp
• 2.5 inches Depth
• 70 mA +/-12V

This particular Analogue Systems module uses either a standard eurorack ribbon cable or the proprietary Analogue Systems Ribbon cable. Please specify which connector you plan to use with your system.

Enhanced precision voltage controlled oscillator High frequency stability & excellent musical tracking over a ten octave range. Accurate waveforms of sinewave, sawtooth, triangle, square & pulse are available as separate outputs, the waveshapes can be independently voltage controlled. a wide range mode allows the oscillator to operate in both supersonic and subsonic frequency ranges as well as in the audio frequency range. Hard sync input for classic complex lead sounds. A high quality ten turn multiturn frequency dial allowing precise tuning of frequencies & incorporating a lock to ensure the dial cannot be turned accidentally. A perfect partner for the rs500e and rs510e modules to give the classic EMS synthi look and feel to any system.
