0HP VCA/ AND GATE
0HP VCA/ AND GATE
Regular price
$ 33.00 USD
Regular price
Sale price
$ 33.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

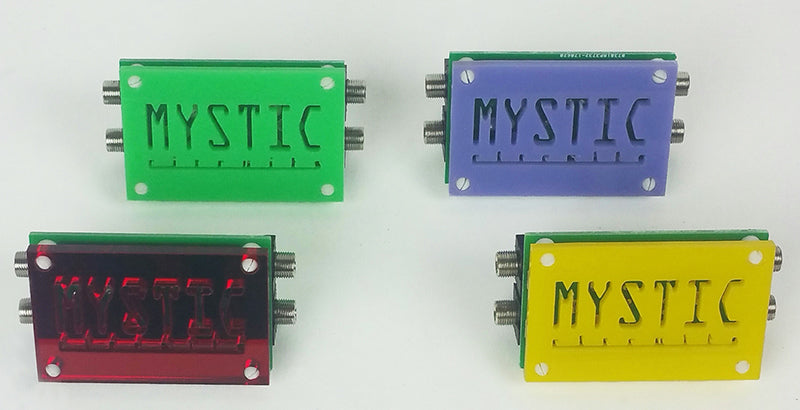

Each order receives x1 of the assorted colors available.
The 0HP VCA/ AND GATE acts like a faucet: When a high control voltage is present, the input is allowed to flow to the output. When there is a low control voltage, the flow is restricted and nothing is present at the output. Using a high speed optocoupler, the module accepts audio at all inputs so audio-rate amplitude modulation is possible for pseudo-ring modulation effects. When used with gates at both the input and the CV input, the module acts as a logical AND gate (an AND gate outputs a high voltage when both of the inputs are high.) A built in trigger converter outputs spike whenever the main output transitions from low to high.
