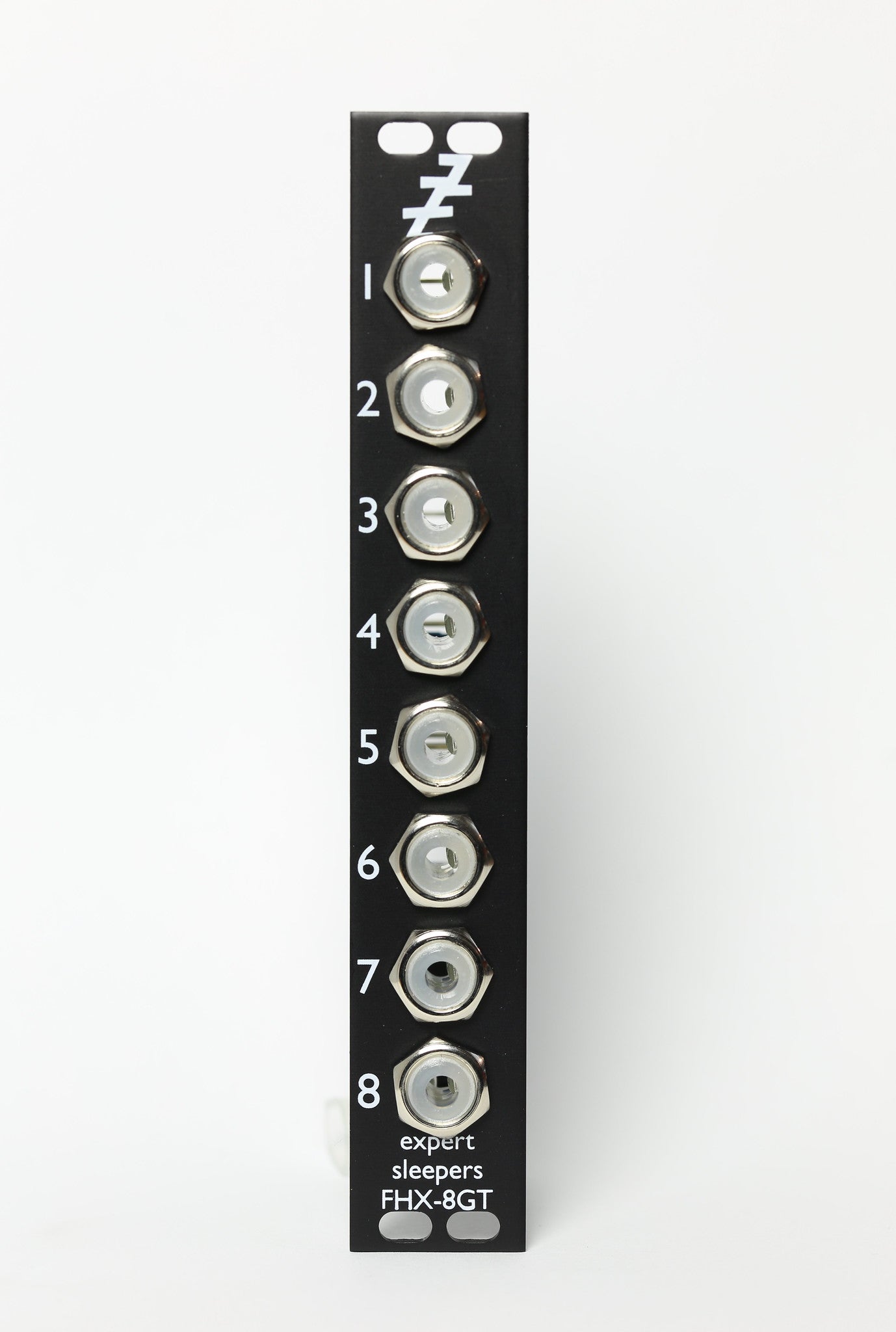

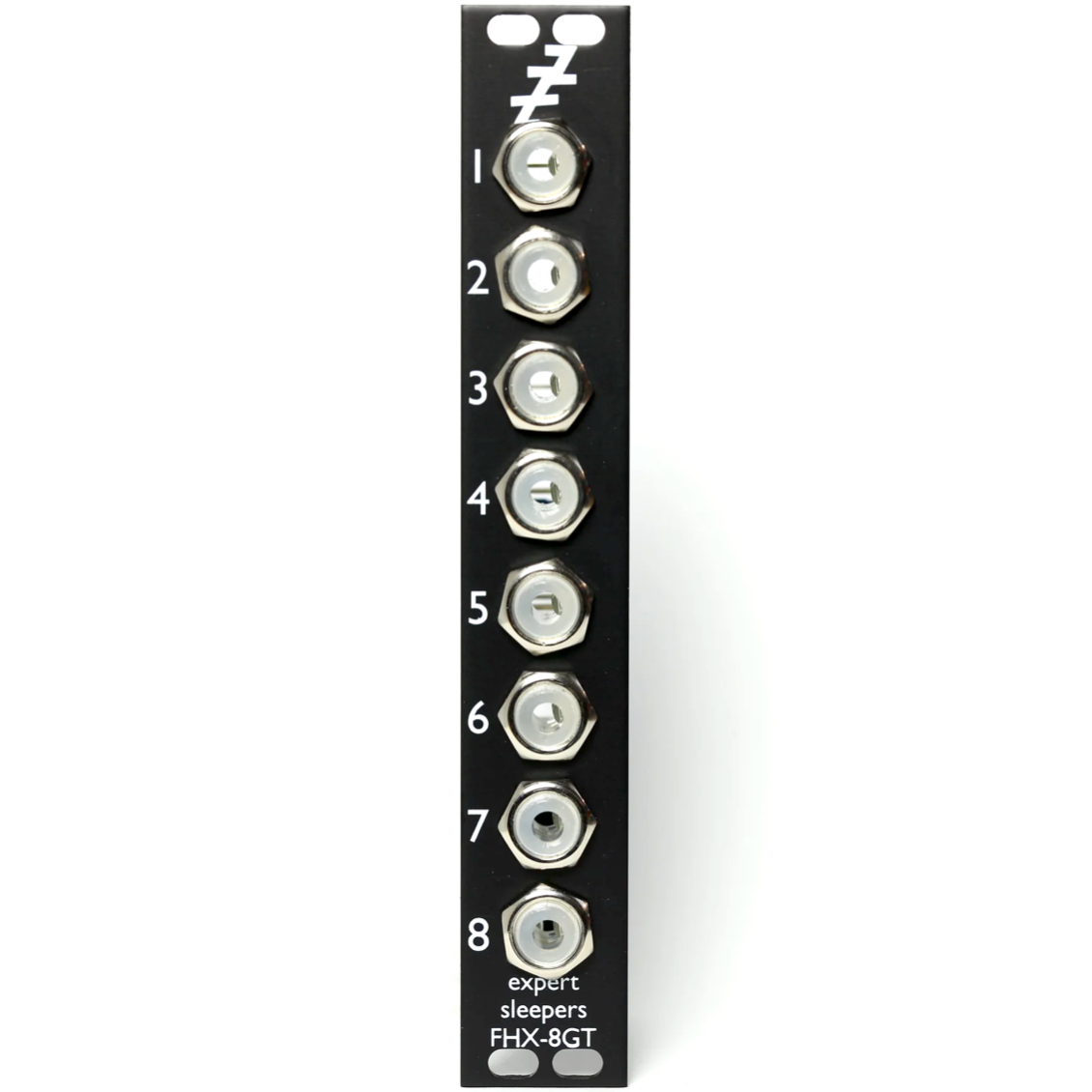

Expert Sleepers FHX-8GT Gate Expander for FH-2

Expert Sleepers FHX-8GT Gate Expander for FH-2

Regular price $ 89.00 USD
Regular price Sale price $ 89.00 USD
Sale Sold out
Shipping calculated at checkout.

The FHX-8GT is an expansion module for the FH-2 'factotum' Eurorack module, providing 8 extra clock/gate/trigger outputs.

Up to four FHX-8GTs can be attached to one FH-2. Each FHX-8GT can also be expanded with the ESX-8GT, for a total of 64 outputs.

This is in addition to the seven FHX-8CV's that can be added to an FH-2 for extra CV outputs.

Specifications

The FHX-8GT's specifications are as follows:

  • Panel width: 4HP
  • Module depth: 41mm
  • Current draw: 16mA on the +12V rail, 0mA on the -12V rail
  • Outputs: 8 (+5V)
  • Expansion header for connecting an ESX-8GT expander.
