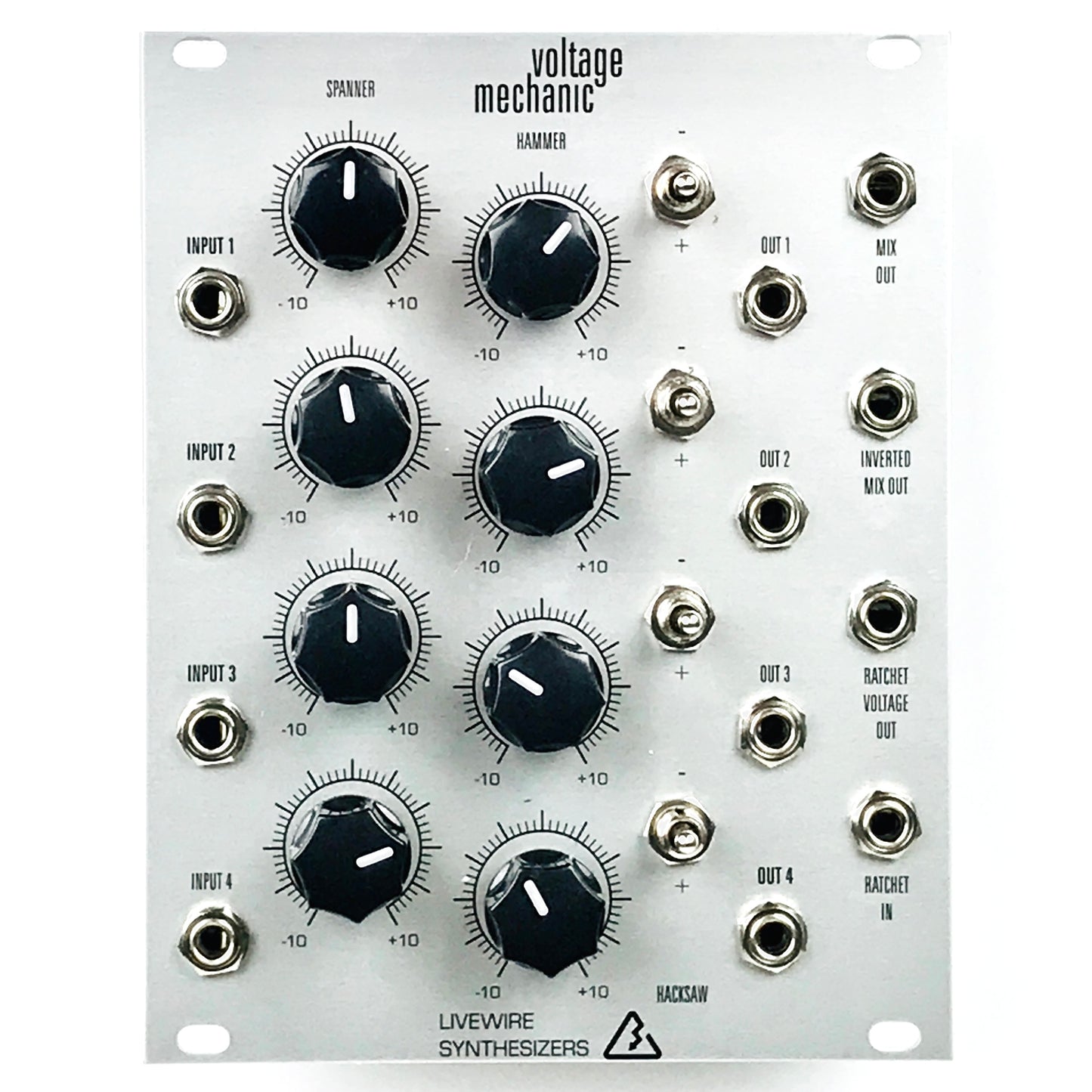

Voltage Mechanic

Livewire

  • $ 25000


Voltage Mechanic Specs:

Function: 4 input Control Voltage Processor w Sample and Hold

Controls:
SPANNER: Variable Phase/Amplitude Control (center = no signal)
HAMMER: Voltage Offset
HACKSAW (switches) Half Wave Rectification:

  • = 0 to +5v
    center = no rectification
  • = 0 to -5v

4 individual post process CV Outputs
MIX Output
INVERTED MIX Output
RATCHET VOLTAGE OUT (Sample/Hold Output)
RATCHET VOLTAGE INPUT (Sample/Hold Clock)
