Elektron Analog Rytm MKII

Analog Rytm MKII

Eight voice analog drum machine & sampler

Key features

• 12 tracks of analog drum synthesis and digital sampling
• 12 performance and scene macros
• Elektron step sequencer & quick performance control

Specifications

Drum voice features (×8)

• Fully analog signal path
• 1 × specialized analog percussion sound generator
• 1 × sample playback engine
• 1 × analog overdrive circuit
• 1 × 2-pole analog multi-mode filter
• 1 × panning VCA pair
• 1 × filter envelope
• 1 × amp envelope
• 2 × individual effect sends
• 1 × assignable LFO
• 1 × dedicated LFO fade envelope

Storage

• 128 projects (+Drive)
• 128 kits per project
• 128 patterns per project
• 16 songs per Project
• 4096 sounds (+Drive sound library)
• 128 sounds per project
• 127 samples per project
• 1 GB +Drive sample storage

Sequencer

• 12 drum tracks
• 1 FX track
• Sequencer MIDI Out
• Up to 64 steps per pattern
• Individual length per track
• Individual scale per track
• Parameter locks
• Step recording mode
• Trig preview
• Trig probability
• Instant pattern, kit, and sound reload
• Live-friendly performance mode
• Trig mute, swing, slide, accent functions
• Trig conditions
• Micro timing
• Chromatic mode
• Scene mode
• Sample-per-step change
• Sound-per-step change
• Assignable retrig
• Full real-time control

Send effects

• Delay
• Reverb

Master effects

• Analog stereo distortion
• Analog stereo compressor

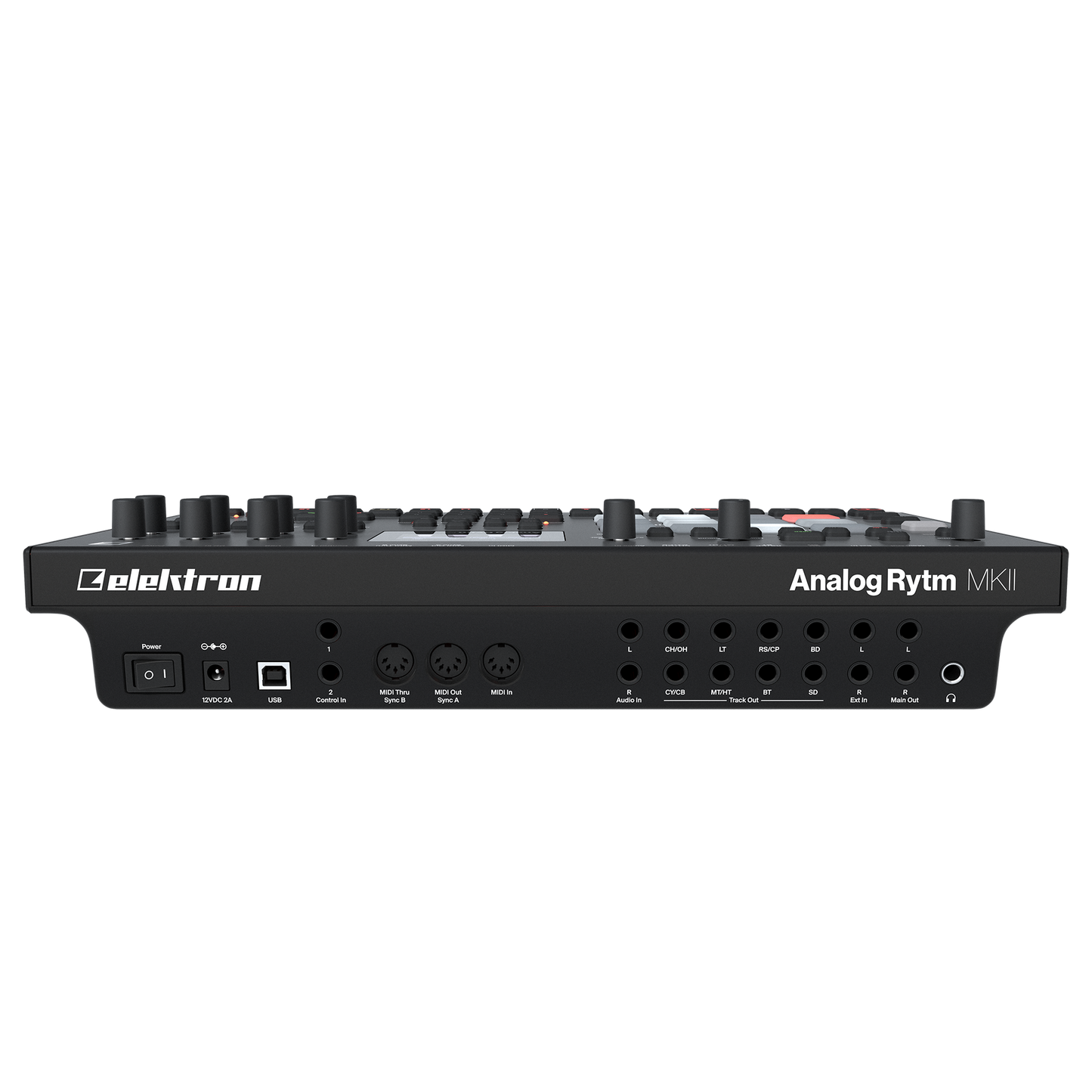

Hardware

• 12 large, velocity, pressure sensitive, and backlit pads
• 128 × 64 pixel OLED screen
• MIDI In/Out/Thru with DIN sync out
• 2 × 1/4” impedance balanced audio out jacks
• 1 × 1/4” stereo headphone jack
• 8 × 1/4” impedance balanced individual track output jacks
• 2 × 1/4” balanced audio in jacks
• 2 × 1/4” ext in jacks
• 2 × 1/4” CV/Expression inputs
• 48 kHz, 24-bit D/A, and A/D converters
• USB 2.0 Hi-Speed port

Balanced audio outputs

• Headphones out level: +15 dBu (55 Ω)
• Main outputs level: +15 dBu
• Individual outputs level: +15 dBu
• Output impedance: 440 Ω unbalanced

Unbalanced external inputs

• Input level: +15 dBu maximum
• Audio input impedance: 9 kΩ

Balanced audio inputs

• Input level: +15 dBu maximum
• Audio input impedance: 19 kΩ
• Digital S/N ratio: 110 dB (20–20.000 Hz)

CV/Expression inputs

• Input voltage on tip: -5 V–+5 V. Supplies +5 V on ring
• Accepts CV, expression pedals

Electrical specifications

• Unit power consumption: 14 W typical, 20 W maximum.
• Recommended power supply: 12 V DC, 2A

Physical specifications

• Aluminum enclosure
• Dimensions: W385 × D225 × H82 mm (15.2 × 8.85 × 3.3″) including knobs, jacks and feet
• Weight: approximately 2.4 kg (5.3 lbs)

Miscellaneous

• Overbridge enabled
• Class compliant USB audio
• 3 year Elektron warranty

Included in the box

• Power Supply PSU-3c
• Elektron USB cable
• Quick Guide
