4ms Buffered Multiple (Buff Mult)

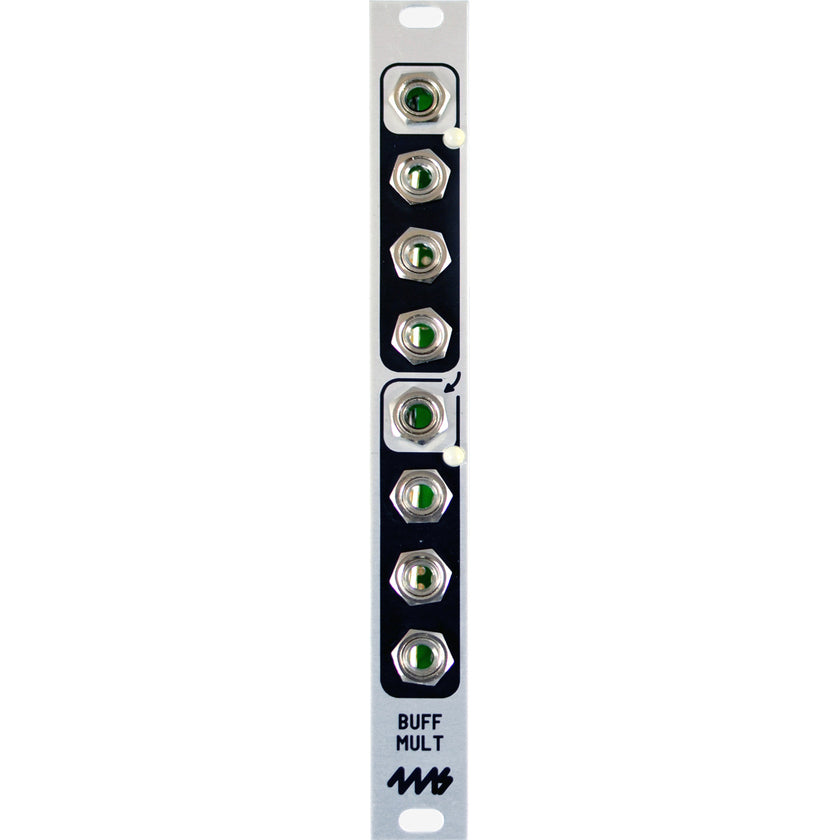

The Buff Mult is a buffered multiple with LED indicators to show positive and negative voltages. Using wide bandwidth opamps, it functions as a dual 1-to-3 or a single 1-to-6 mult for audio, video, or CV signals.

Basic features:

• Two independent buffered multiples, normalized together
• Each channel has one input and three outputs that are high-grade copies of the original
• Each channel has a bi-color LED to indicate positive (white) or negative (red) signal
• Video-rate opamps, for greatest bandwidth of any buffered mult. Fully compatible with LZX and video signals
• Bottom channel is normalized to top channel, for a 1-to-6 multiple
• Useful for detecting signals, troubleshooting patches, isolating modules, preventing "thump" or glitches during live patching, and protecting outputs

Specs

• Module size:
• 3 HP Eurorack format module
• 10-pin Eurorack power header

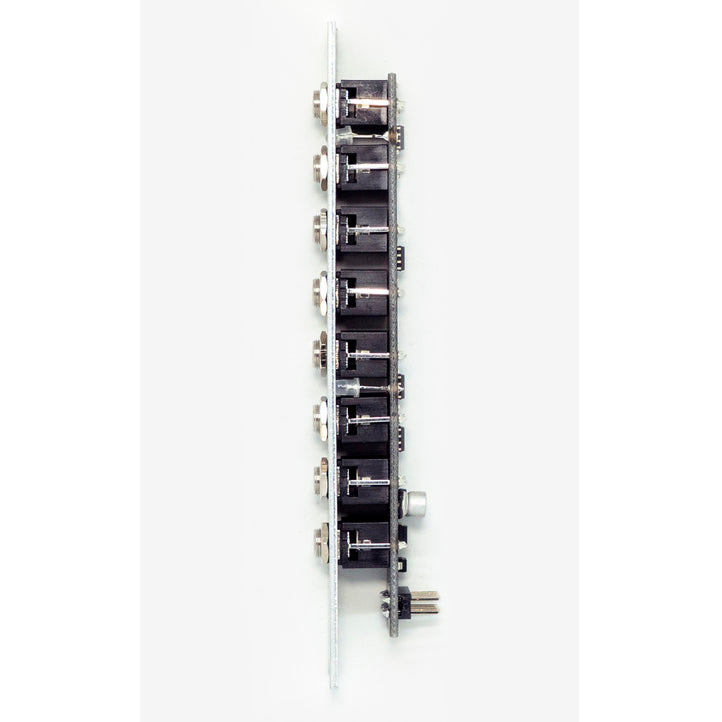

• 0.75" (18mm) deep
• Power consumption:
• +12V rail: 13mA
• -12V rail: 13mA
• +5V rail: Not used (0mA)

Included with the Buff Mult:

• 10-to-16 pin power cable
• M3 Knurlie screws

Note: The Buffered Mult is not a precision multiple and should not be used where exact gain and offset are required (e.g. precisely tuned 1V/oct signals)
