4ms Pod34X Powered Eurorack Case

4ms Pod34X Powered Eurorack Case

Regular price $ 135.00 USD
Regular price Sale price $ 135.00 USD
Sale Sold out
Shipping calculated at checkout.

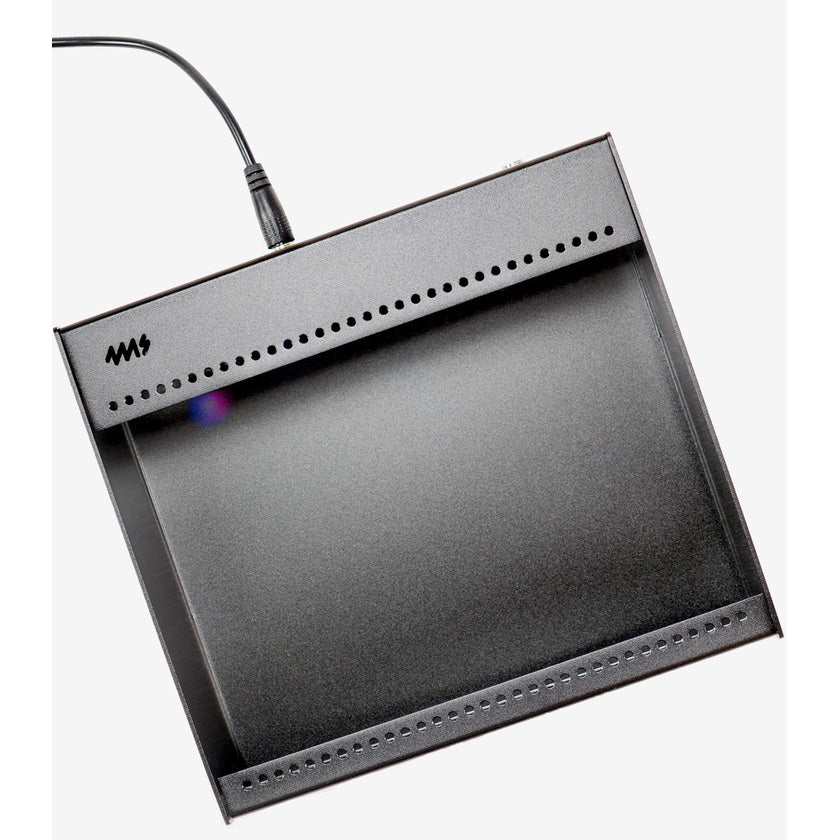

Low-cost, portable, compact enclosure that turns Eurorack modules into table-top instruments.

The Pod34X is 34HP wide and has extra room to fit even the deepest modules (2.16" / 55mm of available module depth). The built-in power supply has four power connectors and can be daisy-chained to other Pods. More power connectors can be added with the Multi Power Cable accessory.

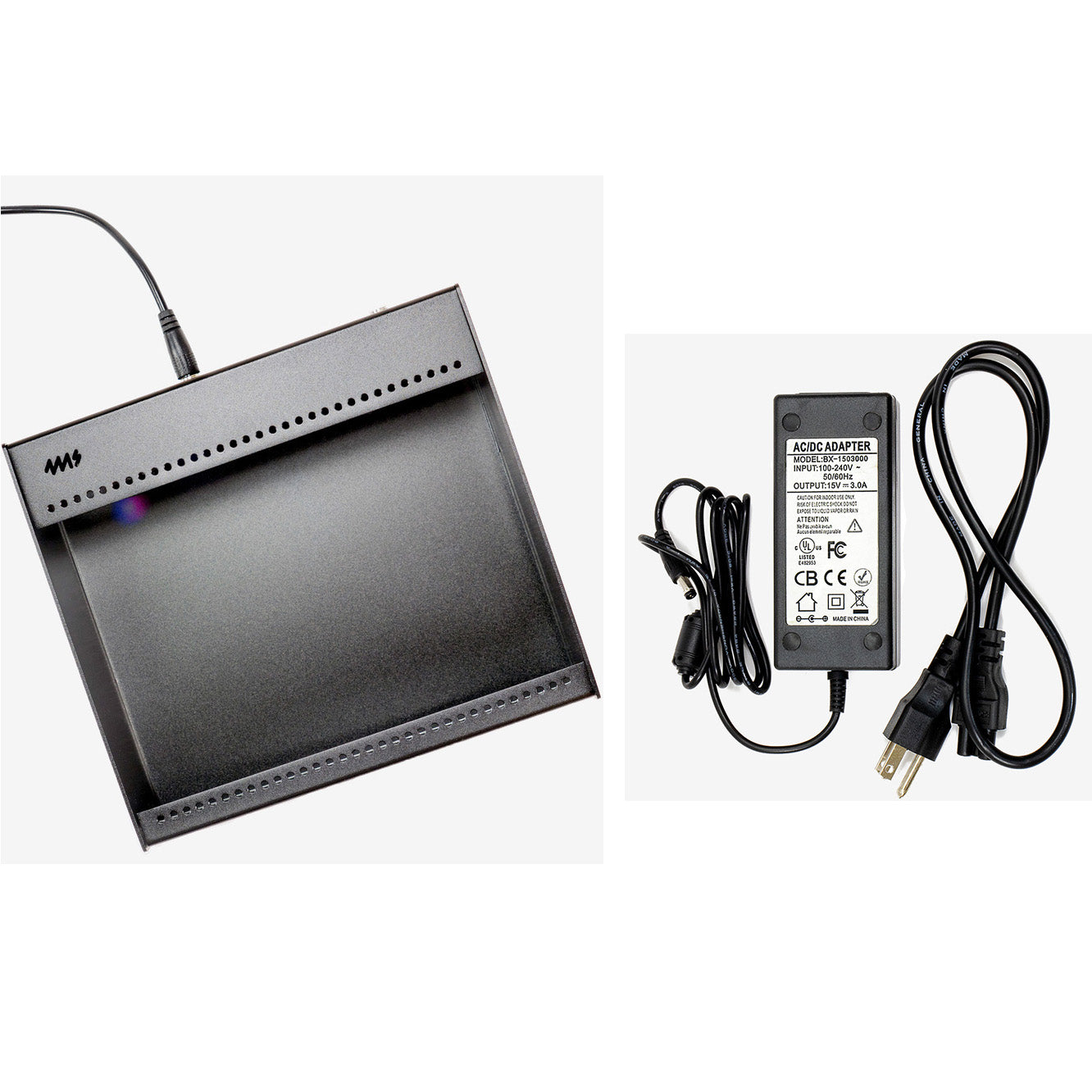

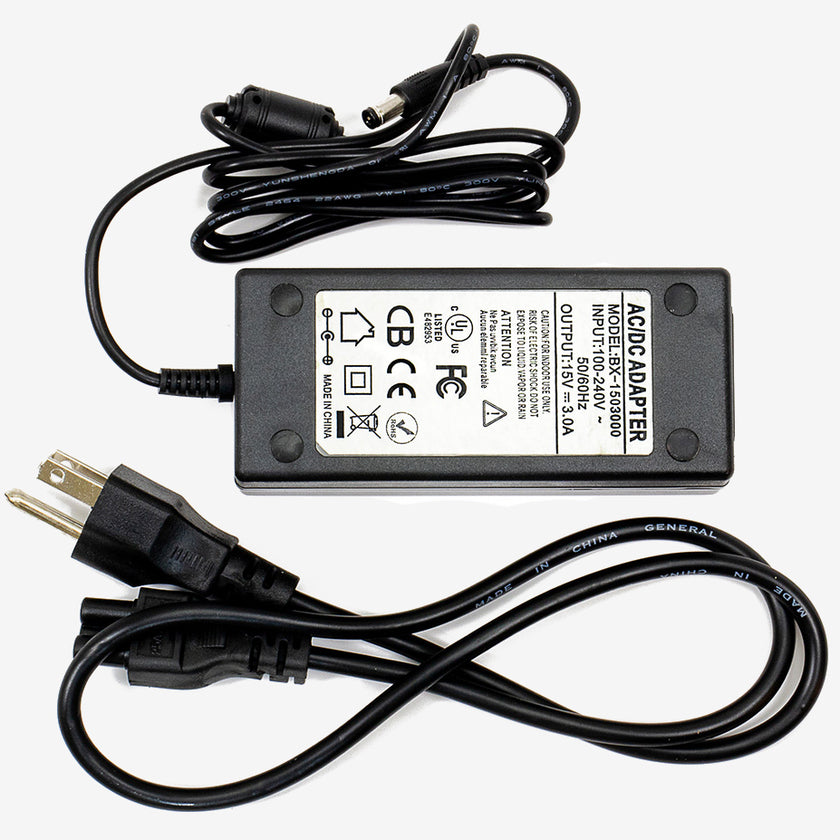

This Pod requires a power brick.

Or, if you already have a Pod and power brick (or a Row Power module) you can use a barrel cable to daisy-chain power supplies.

Pods are a perfect way to get started in Eurorack, or add a couple more modules to your monster system!

Made from 100% anodized aluminum, Pods are light, tough and perfect for on-the-go set ups. The power supply can handle up to 1.4A of +12V, which is plenty of juice for even the most modern digital modules. (Or if you prefer to DIY your power supply, Pods are also available unpowered)

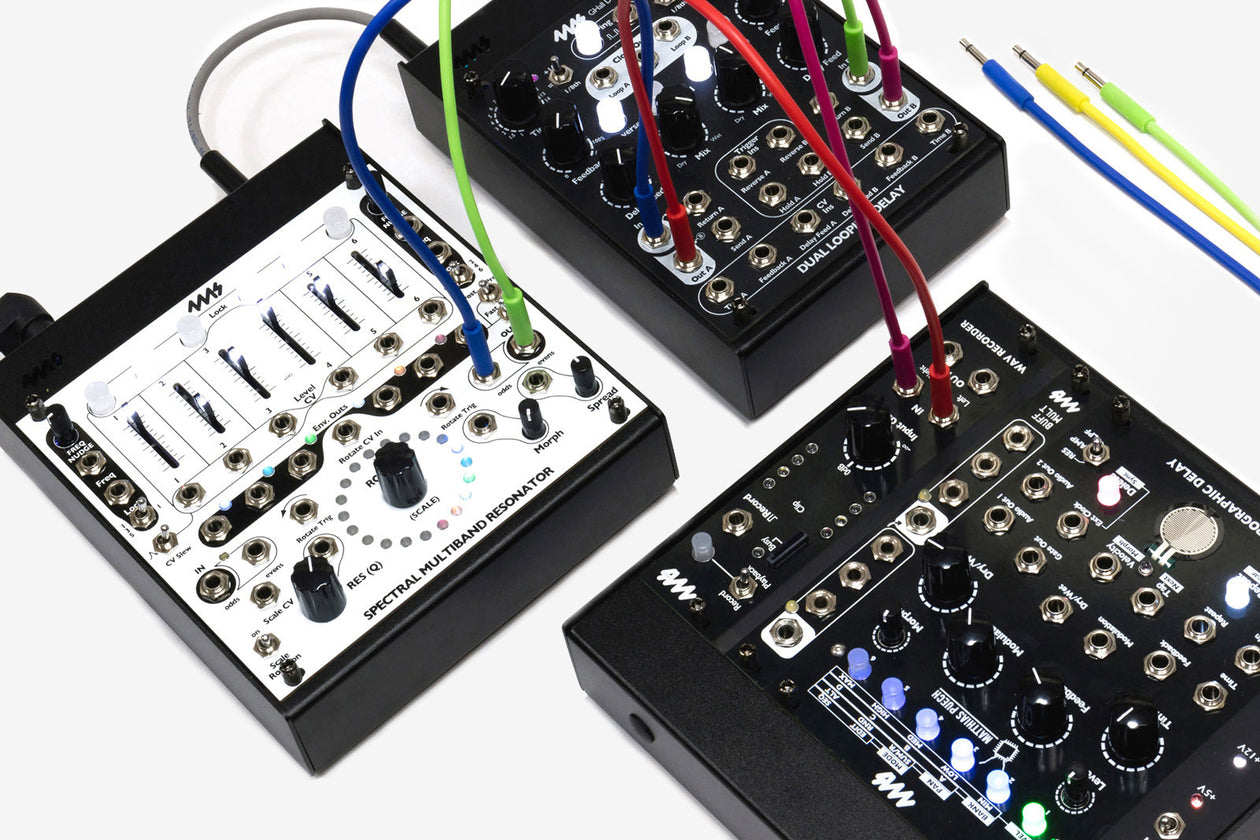

Each Pod typically will house one or two modules, but three or more can be accommodated using a multi-power cable accessory.

Mix and match your Pods with desktop synths, effect pedals, drum machines or any musical gear for a flexible modular system. Pods can even daisy- chain with the 4ms Row Power system making them a convenient outboard mini-skiff. Need to add another module? Just add a Pod! Need to pack light for a live set? Just grab the Pods you need and go!

Basic Features:

  • 34 HP Eurorack modular space
  • Standard M3 threaded holes
  • 100% lightweight anodized aluminum
  • Built-in Power supply
  • Red, White, and Blue LED power indicators

Need a carrying case? Many solutions exist online. Here's one we use for transporting two Pod 60's (or four Pod 32's, or one Pod64X with plenty of room): Gator Mixerbag 1306

Specs

Includes:

  • 34HP Pod, black anodized aluminum
  • Extra deep (2.16"/55mm) fits virtually every Eurorack module
  • Built-in power supply with four Eurorack power headers
  • M3 x 8mm pan-head screws, stainless steel (10)
  • Adhesive rubber feet (4)
  • Does not include barrel cable or power brick

Power Supply:

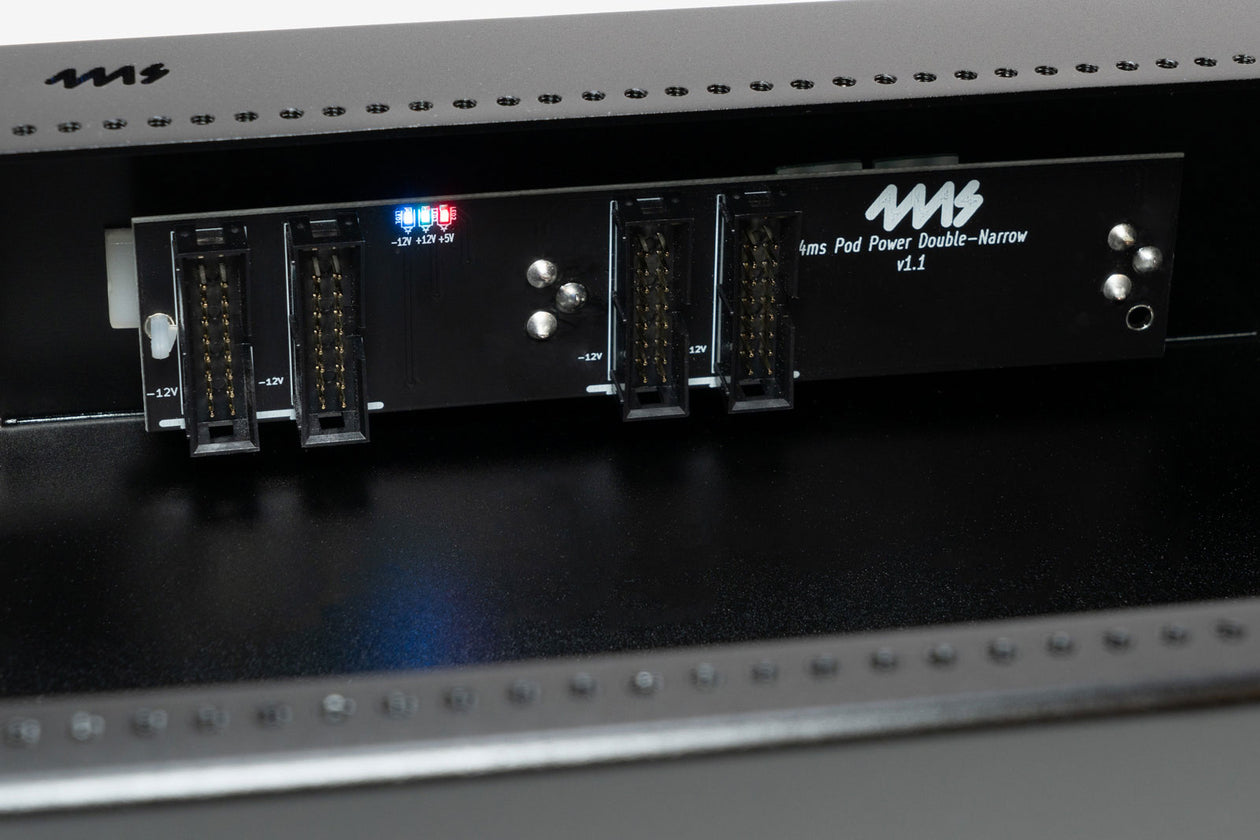

  • Four 16-pin Eurorack power shrouded headers
    • +12V max 1.4A
    • -12V max 0.67A
    • +5V max 1.0A

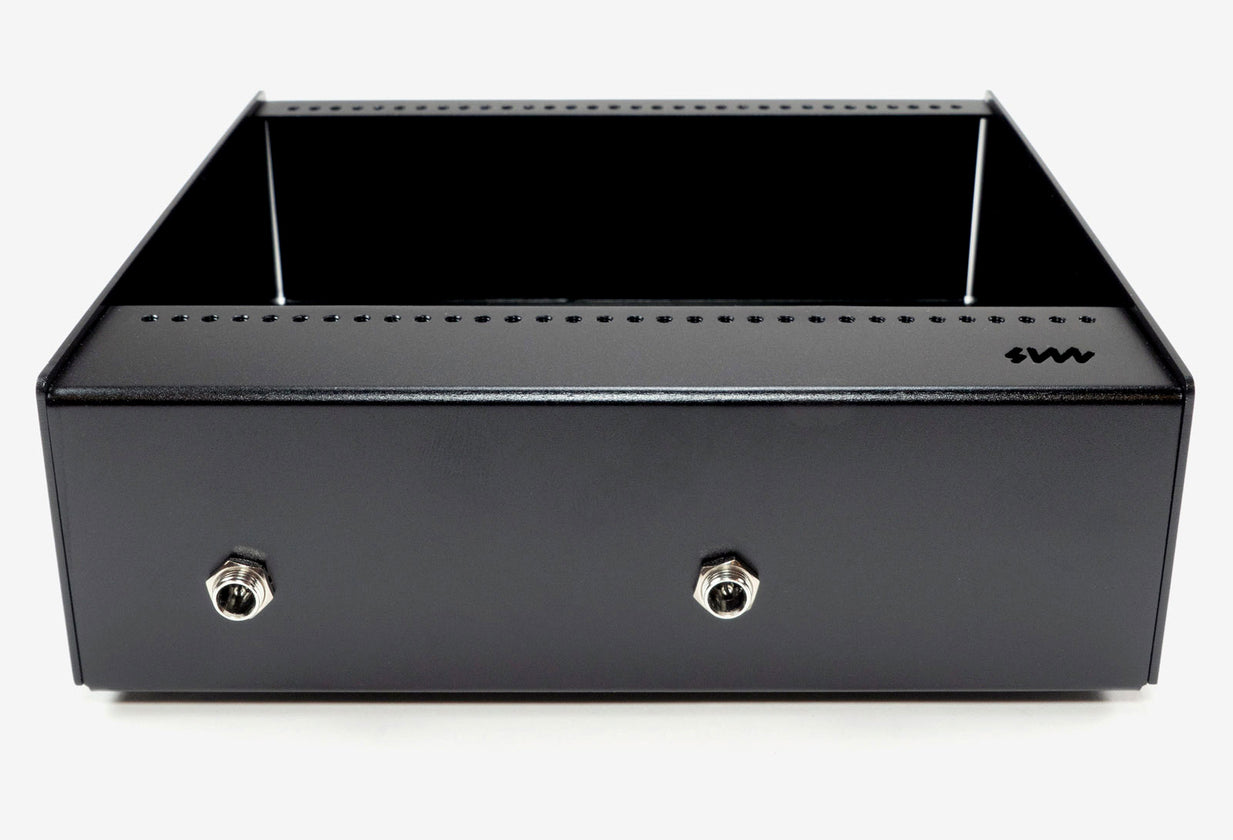

  • Power input: Two barrel jacks for daisy-chaining
    • 15V-20VDC, 2.1mm positive tip

Exterior dimensions:

  • Width: 177.3mm (6.98")
  • Height: 159.5mm (6.28")
  • Depth: 57mm (2.24")

Interior dimensions:

  • Max module depth: 55mm (2.16")
  • Module width: 34HP

Weight:

  • 0.3 kg = 10 oz
