Dave Jones Design O'Tool Plus

Dave Jones Design

  • $ 32500

Pre-Order

The next run of this module is expected to start shipping in early October, 2016.

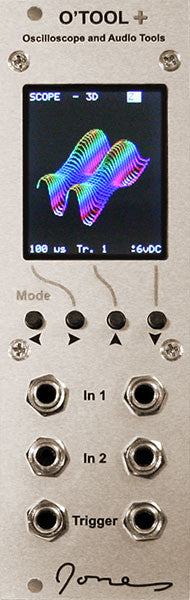

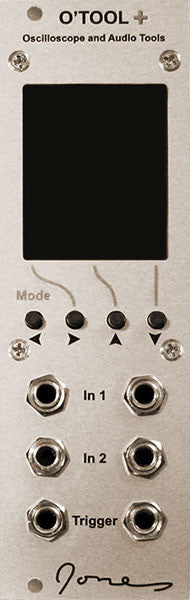

The O'Tool Plus from Dave Jones Design is an oscilloscope
and set of visual audio tools. It is an improved version
of the original O'Tool module. It includes:

  • Single channel oscilloscope
  • Dual channel oscilloscope
  • 3D oscilloscope
  • X/Y display
  • Level meter
  • VU meter
  • Peak meter
  • Voltmeter (with p-p and average DC)
  • Frequency meter
  • Tuner (guitar tuner style)
  • Linear spectrum analyzer
  • Log spectrum analyzer
  • Spectrogram
  • BPM meter
  • Metromome

It includes user configurable settings and can remember
settings at power up for three users. That means you can
have different settings for home, studio, and performances,
or any three different sets of settings.

It is temperature stable and extremely accurate. It can
monitor two signals, with inputs looped through to other
modules. The scope modes include an external trigger option.

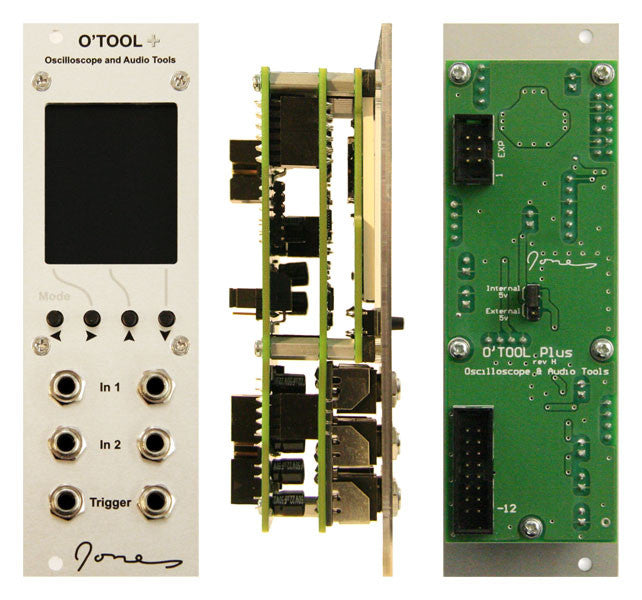

It is firmware upgradable. It has a jumper for internal
or external 5 volt source. It has an expansion connector
for possible future add-on modules.

Power requirements:

80ma +12v
22ma -12v

-or-

12ma +12v
70ma +5v
22ma -12v

Width: 8HP
Depth: 40mm
