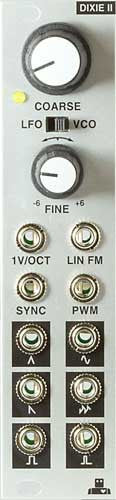

Dixie II


  • $ 22000

triangle core vco/lfo

The dixie II has all the great qualities and features of the original dixie but has been made a bit wider (6hp instead of 4hp) for better spacing and is now skiff friendly. the panel knobs are bolted on and the jacks have more space between them.

This makes a perfect modulation source to pair with the rubicon. Add a ufold, uvca and ufade and you have all the ingredients for a powerful and highly flexible complex timbre generator.


  • Triangle core (superior for musical fm sounds)
  • Hi range (vco): 1hz to 24khz
  • Lo range (lfo): 0.01hz (100 seconds) to 240hz
  • Precise tracking within 0.1% over 8 octaves
  • 6 waveforms, including: triangle, sine, sawtooth, pulse (with pwm), square (50% duty cycle), and a unique モzigzagヤ waveform.
  • Reversing sync (which can be made into soft sync with an external vca or attenuator)
  • Jumper on pcb to select center or edge triggered pwm
  • Header on pcb for connecting master voice controller (e.g. control of multiple dixies in a polyphonic configuration)
