Domino Analog Synth tabletop module

Eowave

  • $ 39900


These Eowave Domino tabletop modules are pretty rare. This is our last one.

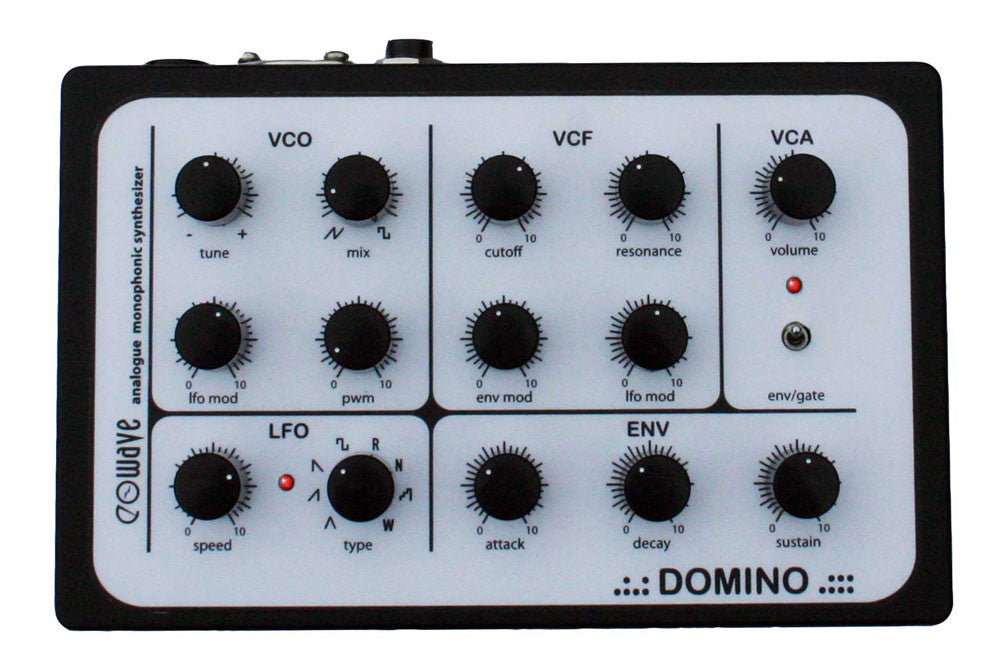

The Eowave Domino is a discrete analogue synthesizer with a VCO in the tradition of the Korg MS20 and Roland TB303. The VCO, filter & VCA are transistor made. This transistor architecture gives .:.:DOMINO.::: a unique raw sound. Rich and raw at the same time, no need of external effects to give life to the sound. The VCO offers a mix between sawtooth and square wave.

Pulse width can be modulated by the LFO. The filter is a low-pass 24dB resonant filter. The analogue envelope range is from 1ms to 10s with attack, decay, sustain/release.The LFO has 8 different waveforms. On waveform 8, the modulation wheel can replace the LFO. MIDI CC 8 to 16 can transform the LFO in a sequencer to modulate pitch, pulse width, filter cutoff. The VCA can be modulated by a gate or by an envelope. In the legato mode, playing notes will generate glide between two notes. The glide time can be edited via MIDI CC. Additional features like a 8 steps sequencer, an arpeggiator and an accent recognition capability turns the Domino into a powerful tool.

Technical specifications:

  • 1 analogue oscillator from saw to square with tune and mix
  • LFO modulation
  • Pulse width modulation
  • 24dB resonant filter
  • Envelope modulation and LFO modulation of the filter
  • LFO with Speed and Type parameters
  • LFO syncable to MIDI clock
  • Envelope with Attack, Decay, Sustain
  • Analogue VCA
  • Env/gate switch
  • 8 steps sequencer
  • Arpeggiator
  • Easy to use.
  • Direct access to all parameters.

Connections:
MIDI in
Audio in
Audio out
Ext. power supply, 12v AC (included)
