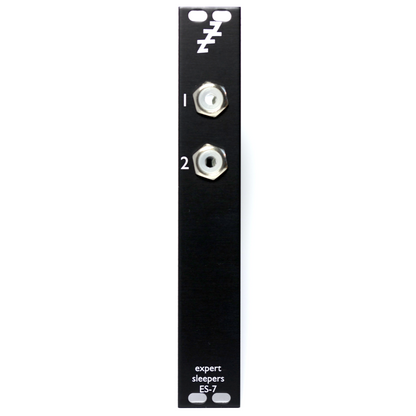

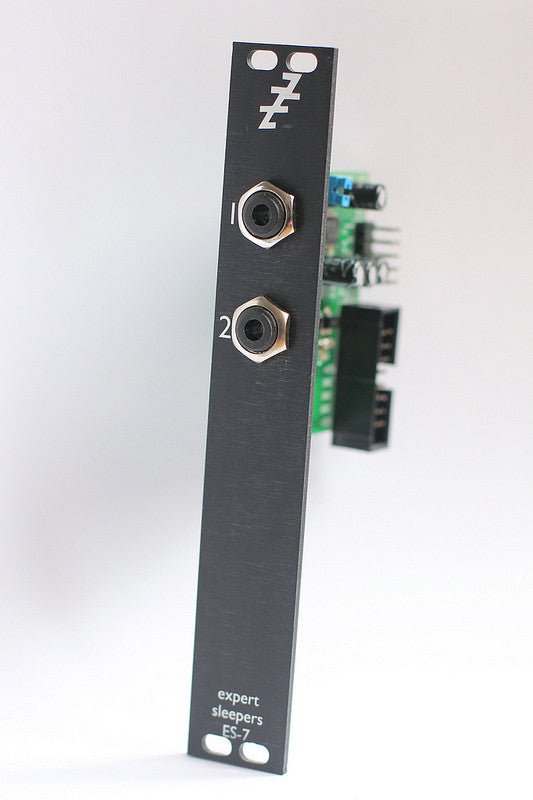

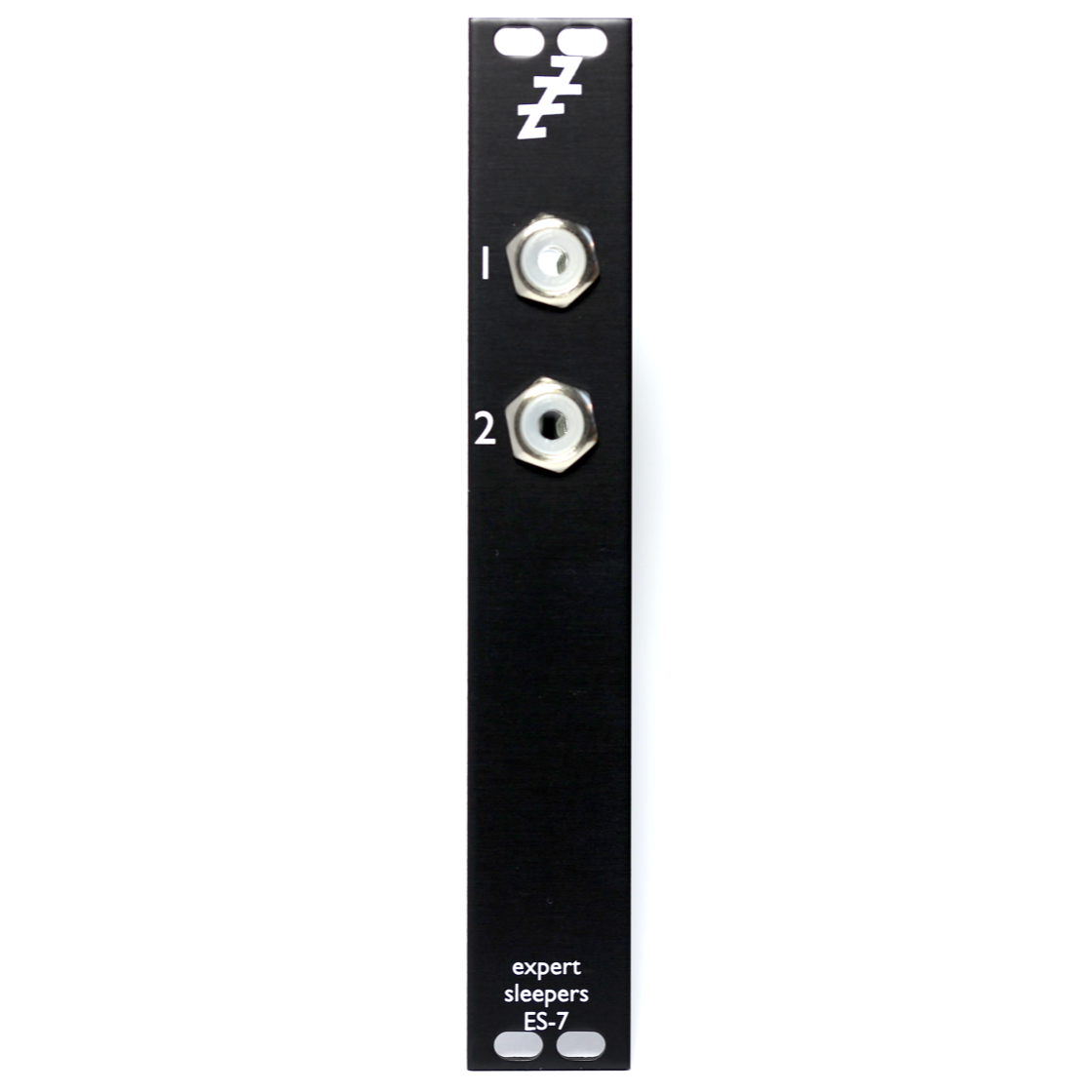

ES-7 Input Expander
The ES-7 provides two channels of DC-coupled CV input to a connected ES-4 or ES-6 module.
When used with an ES-4, the ES-7's inputs are provided on the ES-4's S/PDIF output jack. When used with an ES-6, the ES-7's inputs provide channels 7 & 8 of the ES-6's 8 channel lightpipe output.
Technical Details
When used with an ES-4, the ES-7's inputs are provided on the ES-4's S/PDIF output jack. When used with an ES-6, the ES-7's inputs provide channels 7 & 8 of the ES-6's 8 channel lightpipe output.
Technical Details
- Panel width: 4HP
- Module depth: 50mm
- Digital I/O: connection from ES-4 or ES-6 module
- Analogue inputs: 2x 3.5mm jacks, DC-coupled
- Input voltage range: ﾱ10V
- Input impedance: effectively infinite (FET buffer)
- A/D conversion: 24 bit, 103dB SNR typical
- Current draw: 27mA on the +12V rail, 10mA on the -12V rail (37mA total)
