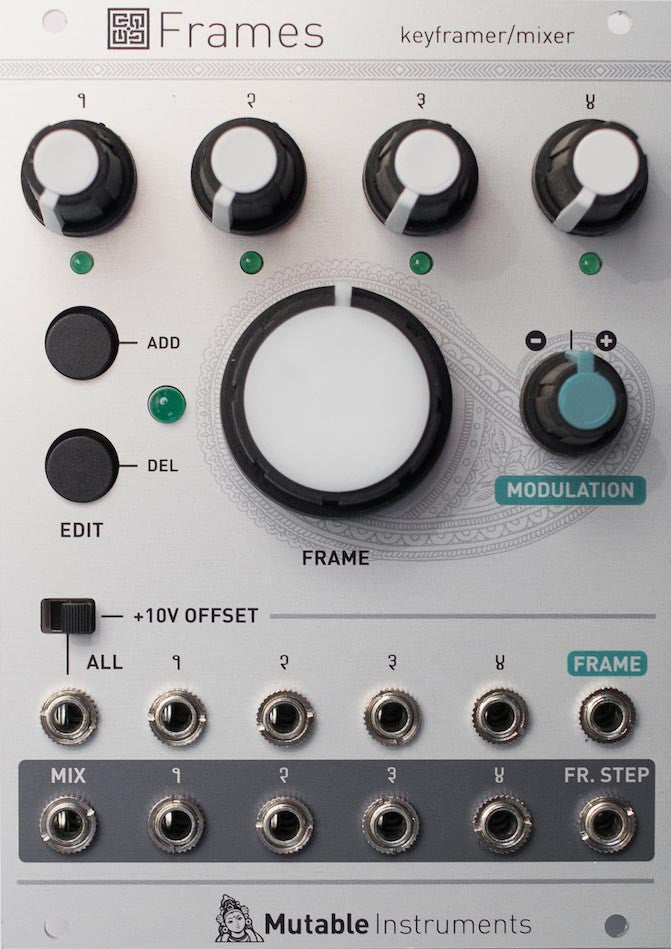

Frames - Mixer/Keyframer

Mutable Instruments

  • $ 35900


The heart of Frames is a 4-channel analog VCA under tight digital control. Through flexible input/output mixing and normalling options, it can be patched to serve the following purposes (among others):
  • 4-channel attenuator/VCA
  • 4-channel mixer
  • 4-channel programmable CV source
  • Quadraphonic signal dispatcher

    But what makes Frames truly unique is the way in which channel/CV levels can be controlled, using a technique inspired by computer animation. Frames allows up to 64 configurations of the 4 level knobs to be stored and recalled throughout the course of its big Frame knob. By rotating the knob (or sending a CV to the Frame modulation input and adjusting its amount with the attenuverter), the configurations are morphed into one another.

    To fine-tune the animation and get varied morphing or sequencing results, the following options are available for each of the 4 channel:

  • Easing curve (stepped, linear, exponential, logarithmic, sine, bouncy)
  • Attenuation response of the level knob, from linear to logarithmic

    With a bit of patching and imagination, Frames can also be repurposed as a 4-channel sequencer, a multi-stage envelope generator or a trajectory generator for quadraphonic panningナ

    Mutable Instruments modules are packed with features and Frames is no exception: Frames can switch easily to an entirely different mode of operation in which it becomes a wavetable quadrature LFO.
