Malekko Quad Gate Delay, brand new old stock!
Malekko Quad Gate Delay, brand new old stock!
Couldn't load pickup availability
effects module

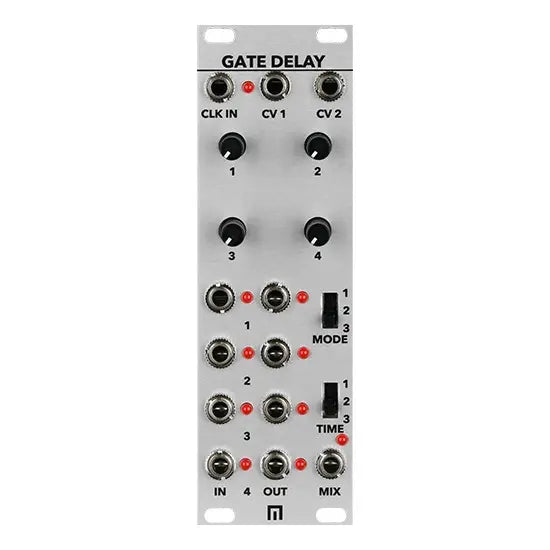

Malekko Quad Gate Delay is an effects module for modular synthesizers in Eurorack format. It works as a rhythm generator and logic delay. The delay has three time modes to choose from: Milliseconds, Tempo Sync (unquantized) and Tempo Sync (quantized). There are also three normalization modes. Each mode can be controlled manually and channels one and two can be controlled via CV input.
Three time modes
The first mode allows up to one second delay per channel. Tempo Sync (unquantized) allows delay up to one bar based on the clock. The third mode, Tempo Sync (quantized), also allows delay up to one bar, but quantized to 1/16 steps.
Three normalization modes
In the first mode, all inputs trigger only their own channel. In the second mode the first input triggers all other channels at the same time and in the third mode the output of one channel sends its signal to the input of the following channel.
Malekko Quad Gate Delay at a glance:
- Four channels with own input and output
- Separate mix output combining all output signals
- Two CV inputs for channels 1 and 2
- clock input
- Three time modes and normalization modes
