Moog Grandmother, Mint

Moog Grandmother, Mint

Open Box, Mint Condition.

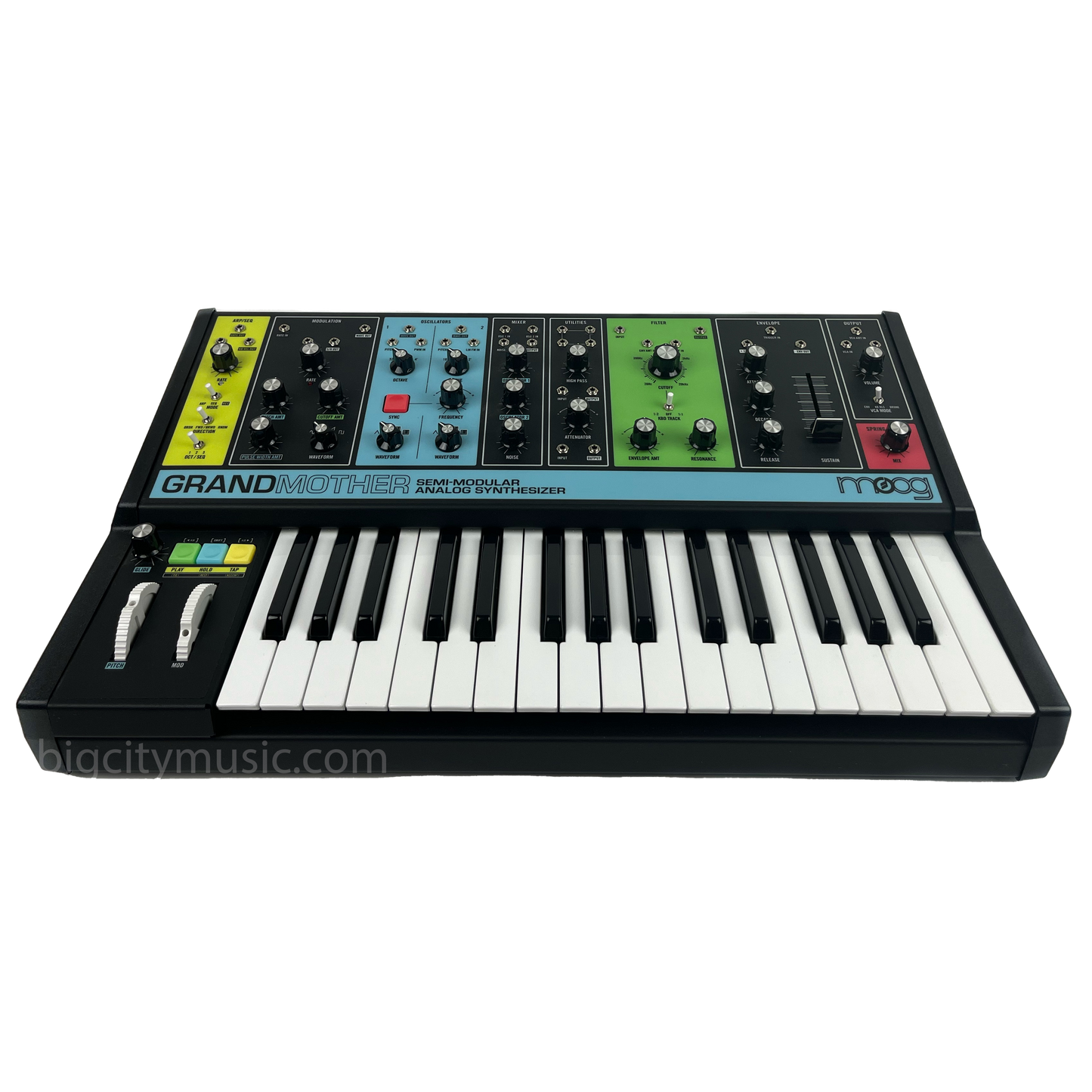

Grandmother is a semi-modular analog synthesizer with a built-in arpeggiator, sequencer and spring reverb tank. Start playing immediately with “no patching required”, and then explore an infinite sonic playground with Grandmother’s reconfigurable front panel. Grandmother’s circuits, spring reverb, and spirit are inspired by the classic Moog Modular Synthesizers, making this instrument a powerful addition to a Mother-32, DFAM or any Eurorack modular system.

The Grandmother is an analog semi modular, 32 key synthesizer released by Moog Music Inc. incorporating circuits based on the Moog modular synthesizer Model 15, and the Minimoog.

Moog’s Grandmother is a two-oscillator analogue monosynth. It has a semi-modular architecture. This means that unlike a fully modular system it has a hard-wired (or normalled) signal path and will play without the use of patch cables. However, a number of additional synthesis options are available via patching.

The keyboard section of the synth includes 32 full-size keys, pitch and modulation wheels, a glide (portamento) knob, and buttons to control playback of the arpeggiator and sequencer.

The Grandmother allows people of any skill level to get involved with analogue synthesis. It requires no patching experience. It features a built-in arpeggiator, sequencer and hardware spring reverb. It also features a reconfigurable front panel, and is controllable via MIDI. There are 41 individual patch points for sound programming, which allows the user the ability to customize their patches even further.

Specifications:

• TYPE

  Semi-Modular Analog Synthesizer

• SOUND ENGINE

  Analog

• NUMBER OF KEYS

  32 Full-Size Keys

• TYPE OF KEYS

  Velocity-sensing (Velocity signal is not hard-wired – available via MIDI and KBD VEL OUT jack)

• OTHER CONTROLLERS

  Pitch Bend, Mod Wheel, Variable Glide

• POLYPHONY

  Monophonic

• SOUND SOURCES

  2 Oscillators with selectable Waveforms (Oscillator 2 supports Sync to Oscillator 1 plus linear FM), 1 White Noise Generator, External Input jack

• VCF FILTER (LOW PASS)

  -24dB/Octave Moog Ladder Filter with Resonance (Self-Oscillating)

• STATIC FILTER (HIGH PASS)

  -6dB/Octave

• MOD SOURCES

  Modulation Oscillator (Sine, Sawtooth, Ramp, Square), S/H Output, plus Envelope and Key Tracking

• ENVELOPE

  Four-Stage (ADSR)

• ATTENUATOR

  Bipolar

• MULT

  Four Parallel-wired Non-buffered Patch Points

• EFFECTS

  Spring Reverb

• ARPEGGIATOR / STEP SEQUENCER

  (256 Steps; three Sequence Files)

• PATCH POINTS:

  41 x 3.5mm front and rear panels, 21 Inputs, 16 Outputs, 4 Parallel-wired Mults.

• AUDIO INPUT

  One 1/4” TS jack (Rear Panel)

• AUDIO OUTPUT

  One 1/4” TRS jack for headphones or line level output (Rear Panel)

• MIDI I/O

  5-pin DIN In, Out, Thru; plus MIDI over USB (Rear Panel)

• DIMENSIONS

  23” (58.42cm) Wide x 14 1/4” (36.19cm) Deep x 5 1/2” (13.97cm) High

• POWER

  Included Power Adapter 12V DC (positive tip), 2A, 100 to 240 Volts AC, 50/60Hz

• WEIGHT

  16lbs. / 7.25kg
