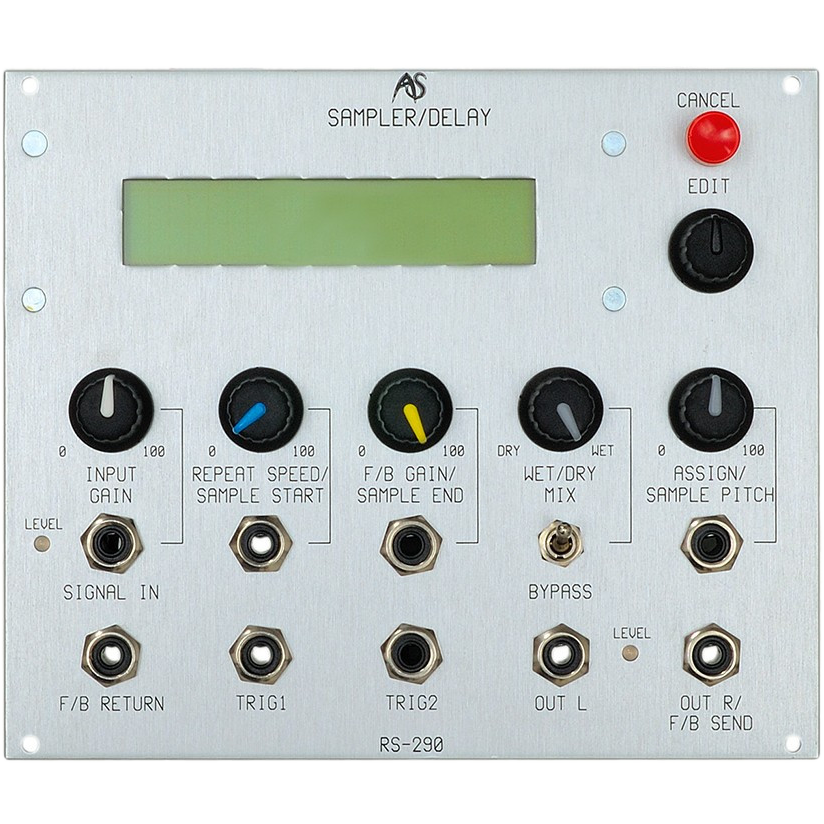

Analogue Systems RS-290 Sampler / Delay

IMPORTANT: Analogue Systems modules have their own power cable that may or may not be compatible with your eurorack case.  Click this link for an installation guide.

Voltage Controlled Delay and Sampler

• 30 hp
• 4.5 inches depth
• 70 mA +/-12V
• 360 mA 5V

The RS-290 is an amazing voltage-controlled delay/sampler. Stunning 48khz, 16-bit, 5.5 second stereo echo and delay with user assignable control of MIDI, analogue clocks and triggers. CV calculates the correct delay time to the incoming tempo. 32 user memories to create personal comb filter, flanging, chorus, pitch shifting and echo programs. Can recreate BBD and tape echo effects of up to 31 seconds in mono mode.

In sample mode the user can voltage control and trigger the source material in ways unavailable until now. Using the RS-295 optional expander samples can be dumped and retrieved using sys ex dumps.
