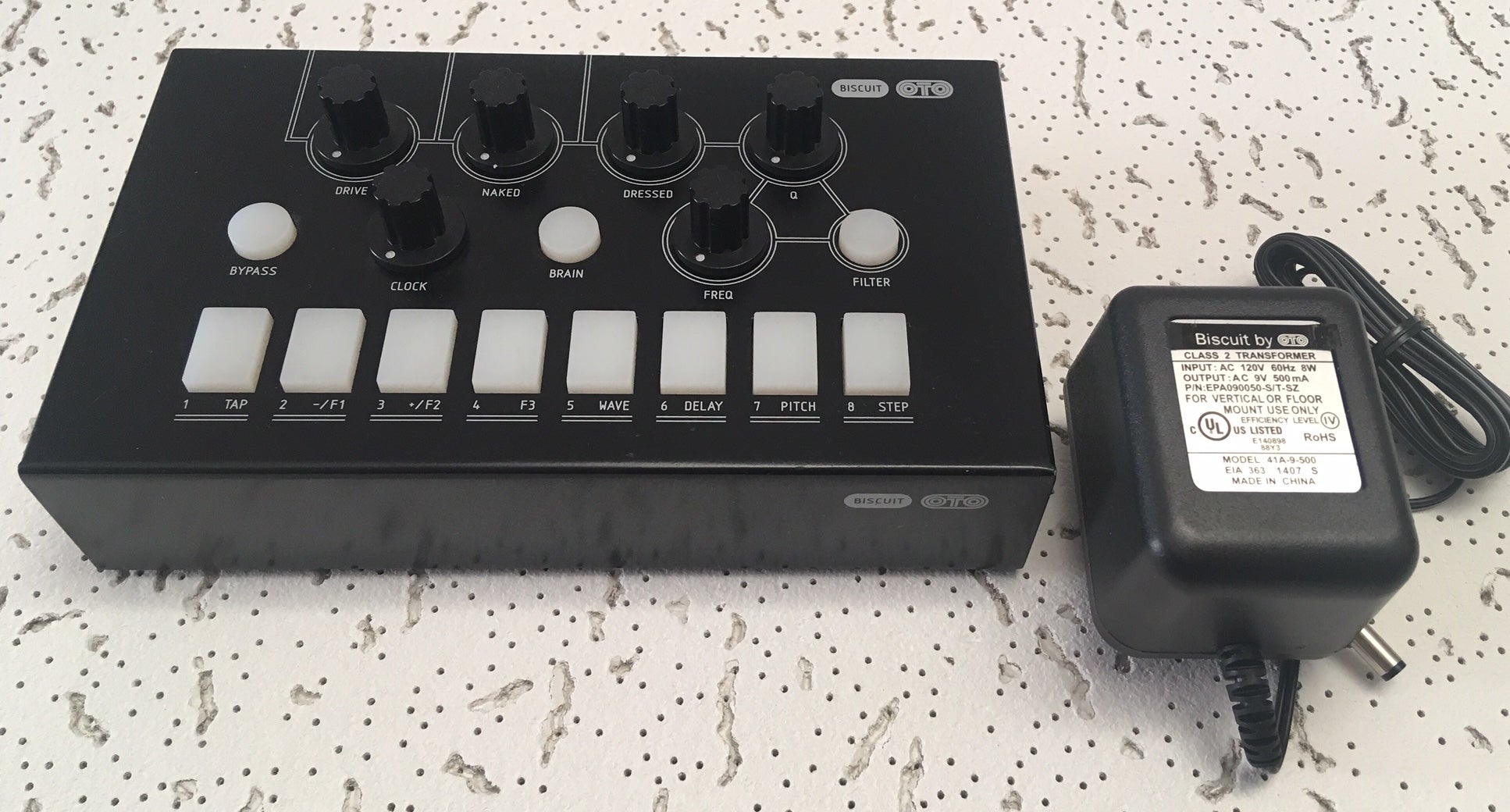

OTO Biscuit (serial #0805) in excellent condition. Original power supply is included.
Add depth, texture and organic behavior to synths, bass lines, drum machines and virtual sounds from computers with BISCUIT !
By using 8-bit converters, digital processing and analog resonant filters, Biscuit opens up a wide range of sounds from harsh distortion, digital and aliasing artifacts to warm and fat 8-bit sounds.
Producers, deejays, musicians and sound lovers can use BISCUIT to extend their sound creation possibilities.
BISCUIT is very much at home in studios, on stage or in clubs.
Mute or invert each of the 8 bits of the digital signal by pressing one of the 8 rectangular switches, to generate strong distortions with an intense digi- tal character.
Lower the sample frequency down to 250 Hz for aliasing effects and use the multimode analog filter to get a warm and fat sound
EFFECTS: Add one of the following effects to your 8-bit modifications:
Each effect contains one or several parameters to set.
Save all the BISCUIT functions (bit status, pots positions, effects and filter settings) in one of its 16 presets.
You can also save as many presets as you like on your computer using the Preset Dump function (MIDI SysEx).
BISCUIT is MIDI compatible. Every pot, switch and effects setting can send/or can be controlled by a continuous controller message (known as CC).
Firmware can be upgraded via a MIDI SysEx file.
ﾕ Stereo inputs and outputs
ﾕ Input gain from -8 to 15 dB with diode clipping
ﾕ Real 8-bit Analog to Digital and Digital to Analog converters
ﾕ Unique capability of muting and inverting each of the 8 bits
ﾕ Variable sample clock from 250 Hz to 30 kHz
ﾕ True analog multimode filter with resonance control
ﾕ FX section: Waveshaper, Delay, Pitch Shifter and Step Filter
ﾕ Separate control of dry and 8-bit signals
ﾕ 16 presets
ﾕ MIDI : Continuous Controller, Beat Clock, Program Change and Sysex for presets
ﾕ True Bypass by relay
ﾕ Rugged metallic Neutrikﾩ jacks
ﾕ Dimensions: 190mm x 60mm x 117mm / 7.48" x 2.36" x 4.60" (W x D x H)
ﾕ Weight: 580g / 1.27 lbs
