4ms SCM Breakout [SCMBO]

The SCM Breakout is an add-on module for the Shuffling Clock Multiplier.

It adds a host of new features for controlling shuffle/swing patterns (Slip, Shuffle, and Skip), as well as Pulse Width, Mute, and 4x Fast. Each feature has a CV jack and manual knob. The Mute and 4x Fast buttons act as inverters of the gate signal on their respective jack, and light up to indicate on/off status.

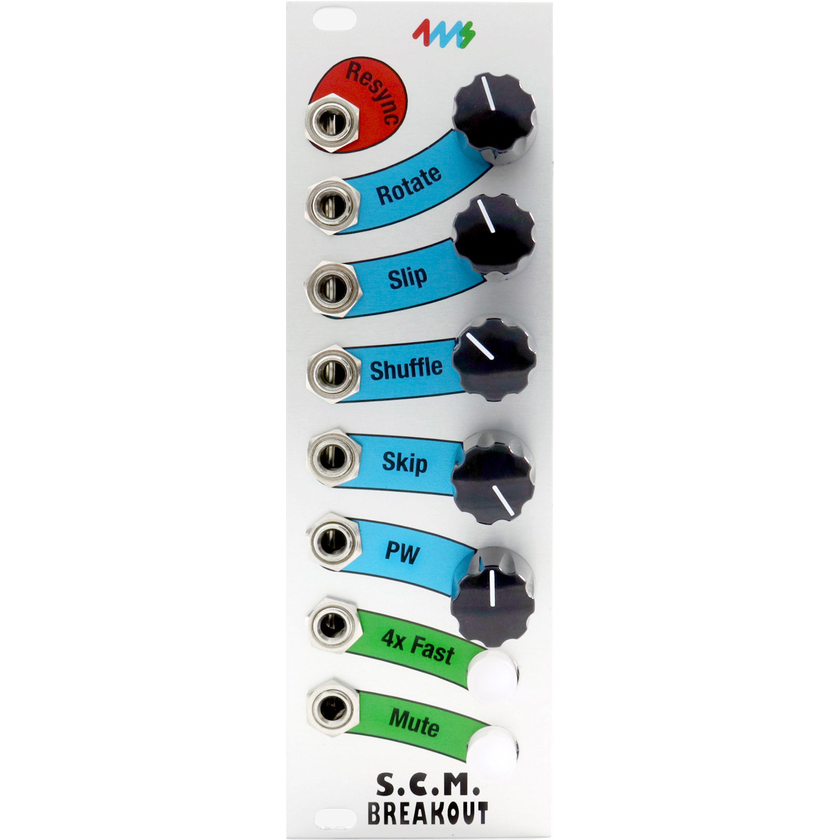

Expansion module (Breakout Panel) for the 4ms Shuffling Clock Multiplier provides these additional features:

• CV Shuffle (jack and knob) - Selects which beats are ﾓslippedﾔ by CV Slip
• CV Pulse Width (jack and knob) - Controls width of output pulses
• CV Skip (jack and knob) - Omits certain beats in a pattern
• Re-sync CV Trigger input jack - Resets beat pattern to beat 1
• Additional CV Rotate and CV Slip jacks - Adds to the main panel's Rotate and Slip jacks
• 4x Fast (jack and switch) - A Gate signal more than 3V will speed up all jacks by a factor of 4
• Mute (jack and switch) - A Gate signal more than 3V will stop any more pulses from starting + all pulses that have already started will end normally
• 8 H.P. Eurorack module

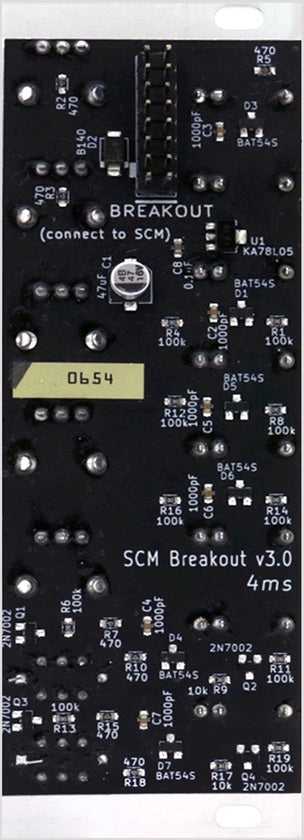

• Connects directly to the SCM with a standard 8x2 cable (same cable used for Eurorack/Doepfer style power connections)
• Please note: SCM Breakout does not connect directly to the power rail
