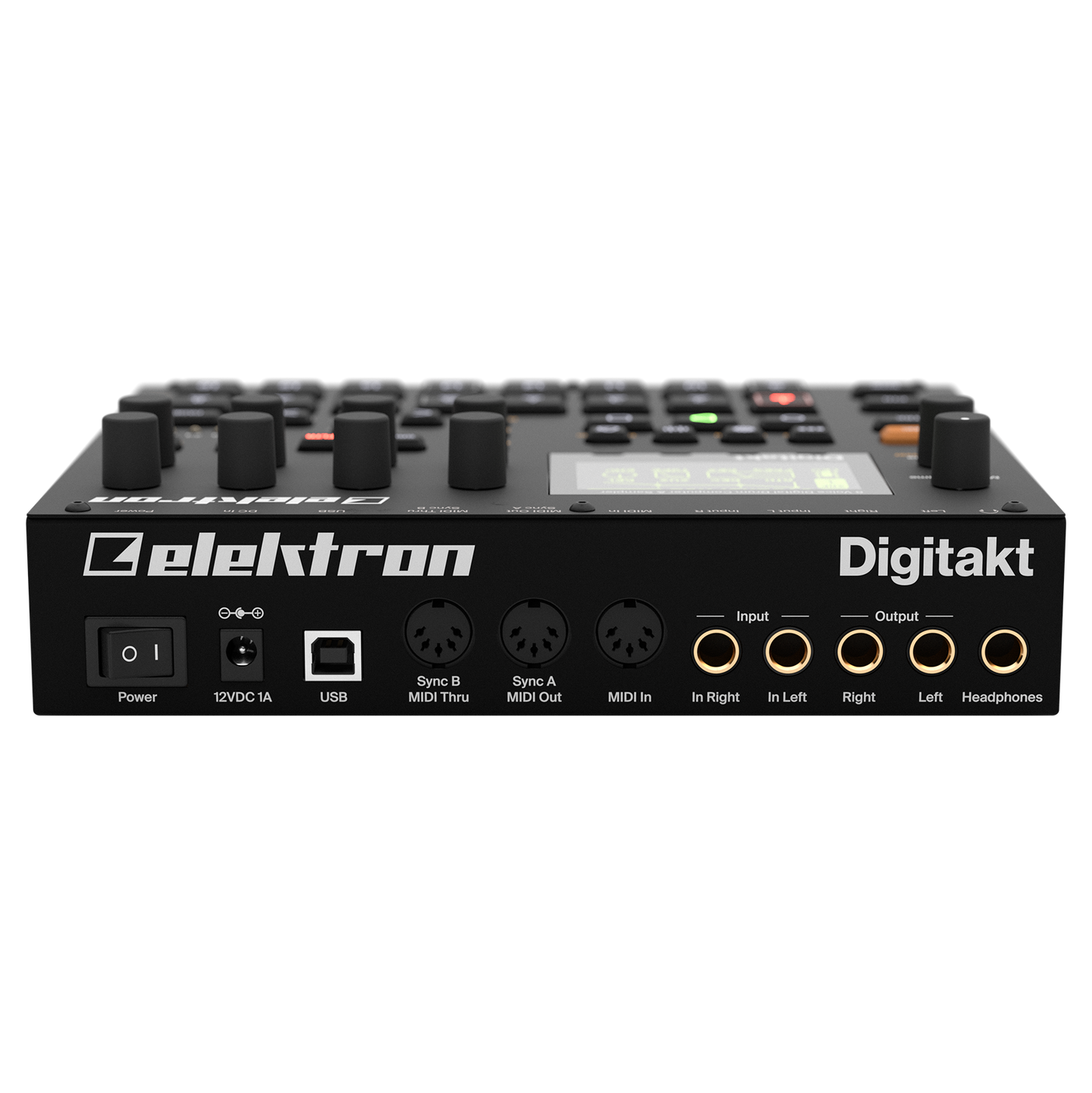

Elektron Digitakt

Digitakt

Eight voice digital drum computer & sampler

Key features

• 8 audio tracks and 8 midi tracks
• 2 LFOs, 2 filters, delay, reverb, and overdrive per track
• Elektron step sequencer
• Song Mode lets you create, edit & play compositions

Specifications

Features

• 8 internal audio tracks
• 8 dedicated MIDI tracks
• 1 × multimode filter per audio track
• 1 × base-width filter per audio track
• 2 × assignable LFOs per track
• 1 × overdrive effect per audio track
• 1 × amp envelope per audio track
• Delay send effect
• Reverb send effect
• Stereo compressor master effect
• Sampling capability
• 64 MB sample memory
• 1 GB +Drive storage
• 1 × headphones output
• 2 × ¼” balanced main output
• 2 × ¼” input
• 1 × Hi-Speed USB 2.0 port
• MIDI In/Out/Thru with DIN sync out

Miscellaneous

• Class compliant USB audio
• Overbridge enabled
• 3 year Elektron warranty

Physical specifications

• Dimensions: W215 × D176 × H63 mm (8.5” × 6.9” × 2.5″) (including knobs and feet)
• Weight: approximately 1.45 kg (3.2 lbs)

Included in the box

• Power supply PSU-3c
• Elektron USB cable
• Quick Guide
