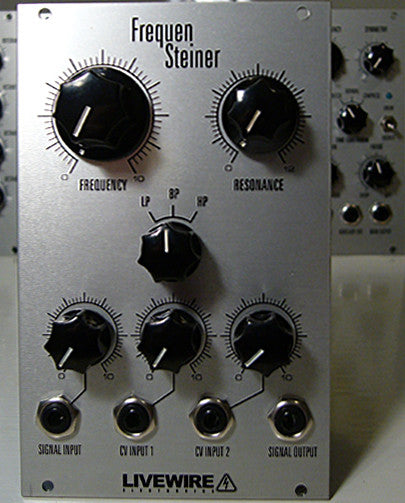

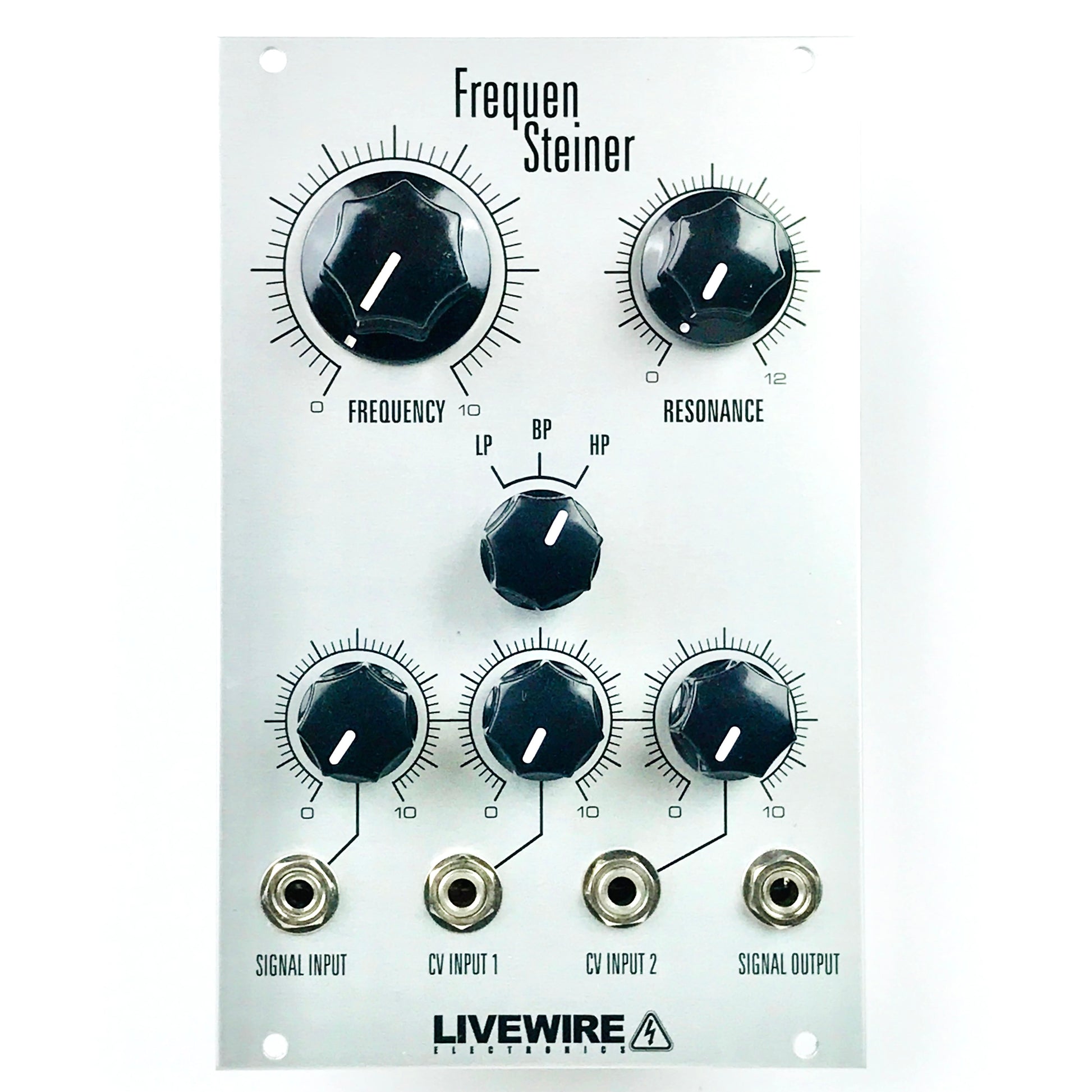

Livewire - FrequenSteiner Multimode Filter Module

Livewire - FrequenSteiner Multimode Filter Module

Regular price $ 225.00 USD
Regular price Sale price $ 225.00 USD
Sale Sold out
Shipping calculated at checkout.
Exclusive production of the SYNTHASYSTEM multimode filter.

Although little was known about this filter until recent years, the Steiner multi-mode VCF now needs little introduction.

This is the authorized exclusive re-release of the SYNTHASYSTEM multimode filter, which differs from the Synthacon's as it incorporates a unique resonation circuit and an expanded diode ladder. And in keeping with it's initial design, the Livewire FrequenSteiner incorporates all discrete components in the filter core (no ICs) and a single input which is switch selectable for low, band or highpass output taps.

Livewire worked closely with Nyle Steiner on the modern adaptation of this classic design and the FrequenSteiner VCF is the first of a series of planned re-releases from Nyle's legendary SYNTHASYSTEM modular.

Inputs: Audio signal input, 2x CV frequency modulation inputs with attenuation.
Outputs: Filtered signal output.

Controls: Signal input volume, 2x CV modulation attenuators, frequency, resonance and LP/BP/HP selection rotary.

Space Usage: 16 HP/TE
Current Consumption: 10mA
