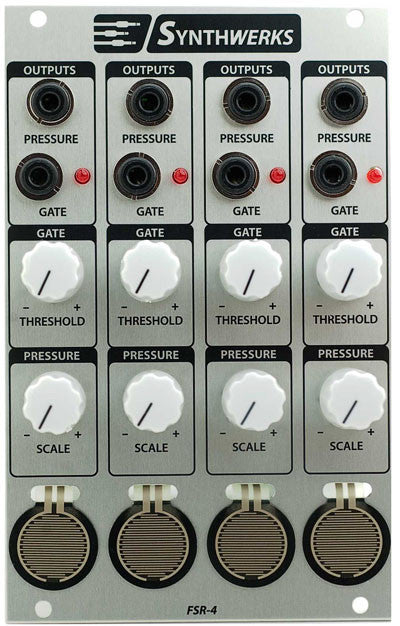

FSR-4 Mk II Quad FSR module

FSR-4 Mk II Quad FSR module

Regular price $ 279.00 USD
Regular price Sale price $ 279.00 USD
Sale Sold out
Shipping calculated at checkout.
The FSR-4 module is one of our growing series of modules based on Force Sensing Resistor (FSR) technology. These modules translate the pressure the performer applies to the sensing pads to user adjustable scaleable control voltage and adjustable threshold dependent gate signal.

The FSR-4 has four identical channels and can produce four independent Pressure Outputs and four separate Gate Outputs. Internal movable jumpers allow any of one the four channel Gate or Pressure Output control voltages to be routed to the standard internal CV and gate bus on Doepfer style power bus boards.

The Force Sensing Resistor pressure sensor is a non-capacitance based polymer thick film technology, responding to any direct pressure. They are not affected by skin resistance, are water resistant, and never need cleaning or polishing. As force is applied to the sensor, the deviceメs electrical resistance decreases and the FSR-4メs circuit converts and scales this resistance change into the Pressure Output control voltage. The Pressure Scale control adjust this voltage range from 0 to over +10 volts. The Pressure Output is also read by Gate Threshold circuit and when this voltage passes a level determined by the Gate Threshold control, a gate is produced at the Gate Output and itメs corresponding LED will light.

The Force Sensing Resistor is an excellent human/machine interface sensor. You can even play them by pressing on them with other objects or while wearing gloves. Rubber pads and other textured surfaces can be placed on top of the FSR-4メs sensors to make a user defined custom feel to the playing surface.

Module size = 16HP
