Illyana Dual Boolean Logic

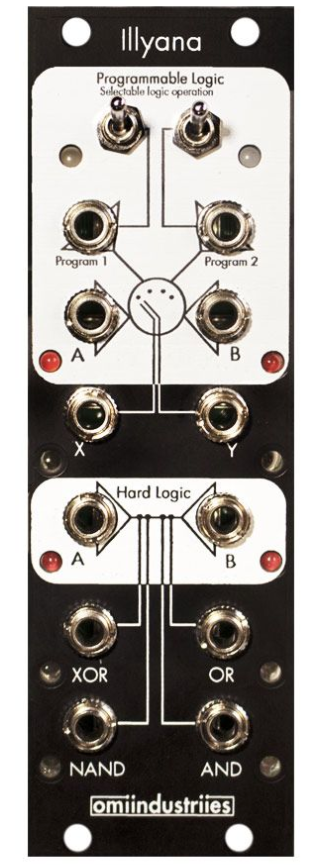

Illyana from Omiindustriies is a dual boolean logic module. As the name suggests, the module consists of two logic sections that are non-identical to each other: hard logic, and programmable logic. Both channels have two gate inputs—A and B. The bottom, hard logic section boasts with four hard-programmed logic outs: OR, XOR, AND, and NAND. the second channel has two outputs: X and Y, which are programmable by the two switches on top of the panel, and a pair of additional gate inputs: Program 1 and Program 2. Use Ilyana to spice up your sequences, mix different clock sources, and prepare to be surprised by the plentifulness of logic infused happy accidents.

• Two channels of boolean logic
• Total of 6 logic outputs
