WMD Invert / Offset

WMD Invert / Offset

Regular price $ 99.00 USD
Regular price $ 89.00 USD Sale price $ 99.00 USD
Sale Sold out
Shipping calculated at checkout.

Simple utility with purpose

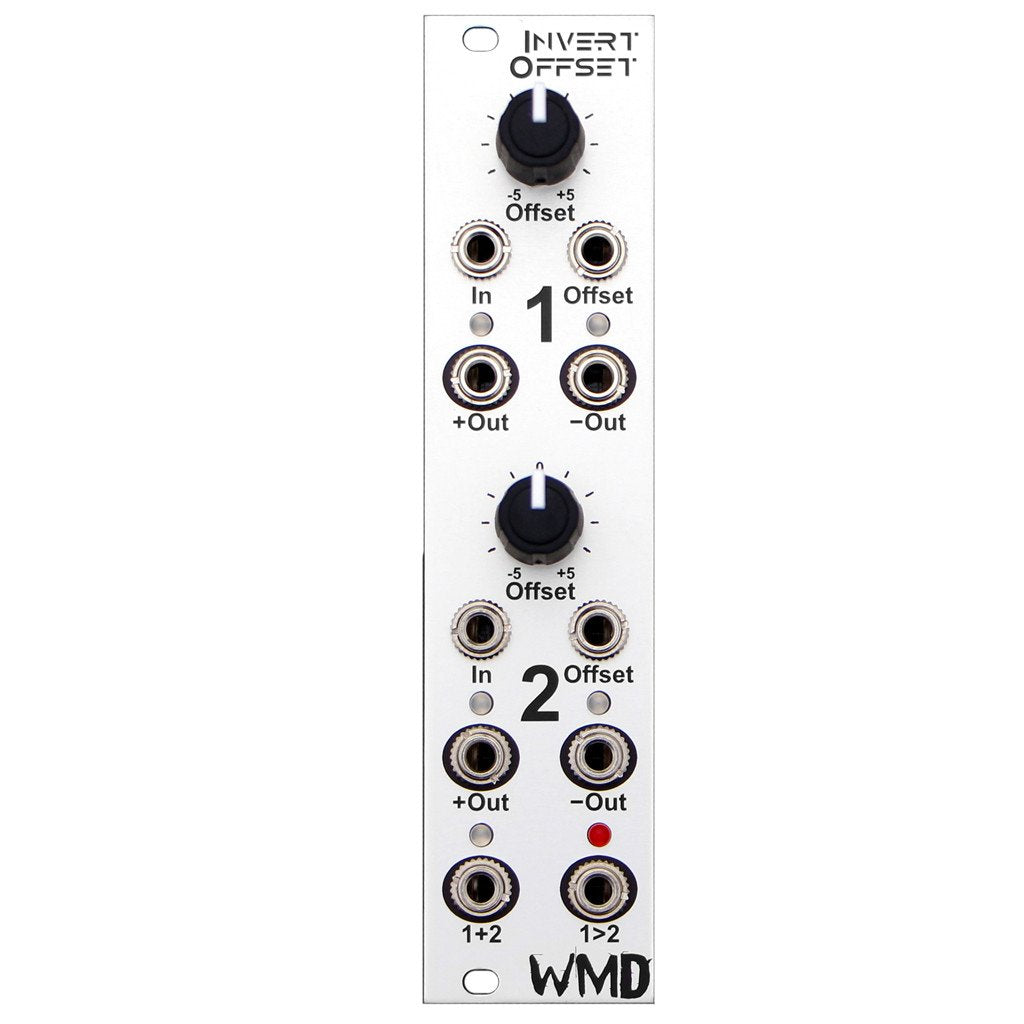

The 6 HP Invert Offset module creates an easy way to modify control voltages for other modules in your system.

The Invert Offset consists of two identical channels. Signal applied to the In jack is vertically offset by the knob, additionally a CV signal may be applied to offset the signal vertically.

The +Out jack puts out a non-inverted signal with the specified offset. The -Out jack puts out an inverted signal with the same offset as the +Out.

The Offset CV input allows you to mix two signals together, Offset will never be inverted, while the signal at the In jack will be inverted based on the selected output.

There is also a sum output (1+2) that takes the non-inverted outputs and adds them together. Also there is a comparator gate output that is on if the channel 1 output is more positive than channel 2.

  • 2 Channels
  • Sum Output
  • Comparator Gate Output

Specs:

  • Power: +12V = 20mA; -12V = 20mA
  • Size: 6HP
  • Depth: 31 mm
  • Every WMD product is warranted for 12 months after purchase, but please contact us if you ever have problems. We will take care of you.
