Elektron Machinedrum SPS-1UW+ MKII Brand New Old Stock

Elektron Machinedrum SPS-1UW+ MKII Brand New Old Stock

Regular price $ 3,249.00 USD
Regular price Sale price $ 3,249.00 USD
Sale Sold out
Shipping calculated at checkout.

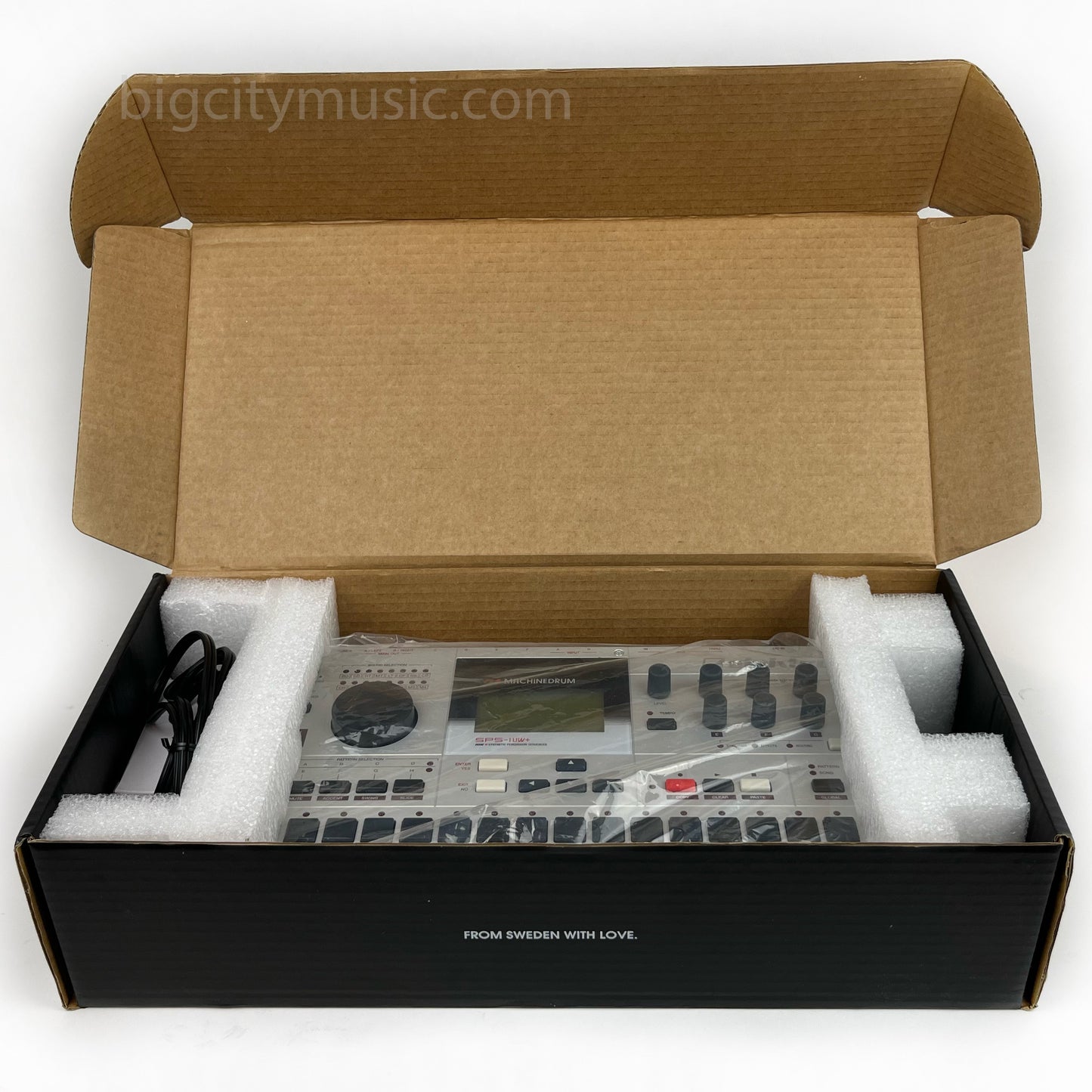

This is a brand new old stock (N.O.S.) Elektron SPS-1UW+ MkII. This version is the last "+Drive" version with vastly expanded storage. The protective film is still on the display.

Elektron Machinedrum SPS-1UW+ MKII (Serial Number: J14284502-47)

The SPS-1UW+ MKII is the Machinedrum model with the largest storage space to date. The +Drive makes this possible. The +Drive of the Machinedrum SPS-1UW+ MKII divides the machine in 128 Snapshots. Each Snapshot can contain up to 128 patterns, 64 kits, 32 songs, 8 globals and a sample bank consisting of 48 ROM sample slots.

Either load a completely new Snapshot or a single sample bank. When loading a new Snapshot, all patterns, kits, songs, globals and samples are replaced by new content. Loading a new sample bank will just replace the samples, all other content of the current Snapshot stays intact. Load times for both options are just a few seconds.

The +Drive gives the enormous advantage of having thousands of patterns and sounds more or less instantly available. Change Snapshots during a live performance for a completely new session. Load a fresh sample bank and try it together with your currently active Snapshot patterns and kits. With a Machinedrum equipped with a +Drive, storage space is the last thing you need to worry about.


  • 16 Track Percussion Seq
  • 64 Step Patterns
  • 16,384 Patterns
  • 4,096 Songs
  • 8,192 Kits
  • Programmable Swing, Accent & Slide
  • 16 x 24 Lockable Parameters
  • Classic or Extended Mode
  • Full Realtime Control
Effects System:
  • 16 x Amplitude Modulation
  • 16 x Resonant 24dB lp/bp/hp Filters
  • 16 x Sample Rate Reduction
  • 16 x Distortion
  • 1 x Rhythm Echo Delay
  • 1 x Gatebox Reverb
  • 1 x Master EQ
  • 1 x Dynamix Processor
Sound Generation:
  • 5 MD Synths
  • 130 MD Machines
  • 6,144 Sample Slots
  • 16 Part MD Synthesis
  • 16 MIDI Machines
  • 16 LFO's
  • Live Optimized User Interface
  • MIDI Parameter Locks
  • Full MIDI Implementation
  • +Drive
  • 128 x 64 Backlit LCD
  • MIDI In/Out/Thru
  • 6 x 1/4" Impedance Balanced Audio Outputs
  • 2 x 1/4" Audio Inputs
  • 1/4" Stereo Headphone Output
  • Dual DSP System
  • Steel Casing
  • Worldwide Switched-mode Power Supply Unit
