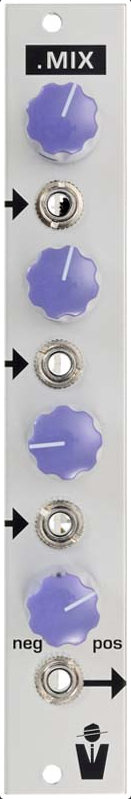

STG .MIX is a three-channel mixer module. parts of itﾴs circuitry have been copied from the good old Moog CP3. Audio signals can be distorted easily so the module is well suited for audio signals but also CVs can be mixed with it.
Mixer with three inputs and one output. The output attenuator is bi-polar.
The .MIX is built without any operation amplifiers and has a transistor based makeup gain stage that can distort the signal quite properly, but still with a nice sound. This stage originates from the vintage Moog CP3 module.
Three inputs and one output
3U Eurorack module, 4HP wide, 53mm deep.
