Jomox created this eurorack module for both live drummers and modular people. Therefore, a CV/Gate control and trigger inputs for drumpad pickups are available. For regular modular use, analog routable CV inputs and an analog output are accessible via 3.5mm jacks. The Gate can be configured as 0-5V (0-15V is accepted too), inversed or s-trigger.
Everything is storeable and can be recalled via encoder klick from 100 presets. But for the analog feel of modular, eight potentiometers give you the fine and precise editing of the most important parameters without stepping through menus.
E-Drummers can create complete E-drum setups, because there is an internal Jomox analog connection bus with a fast digital link which can do a submix and an FX send mix from each module hooked up to the bus.
With this system bus you won't need to use the audio outputs but instead you have a programmable bus system that can link to future master, sequencer and mixing or effects modules - which can take control over the single modules.
This makes the whole modular setup recallable and storeable from a center module like a drum machine.

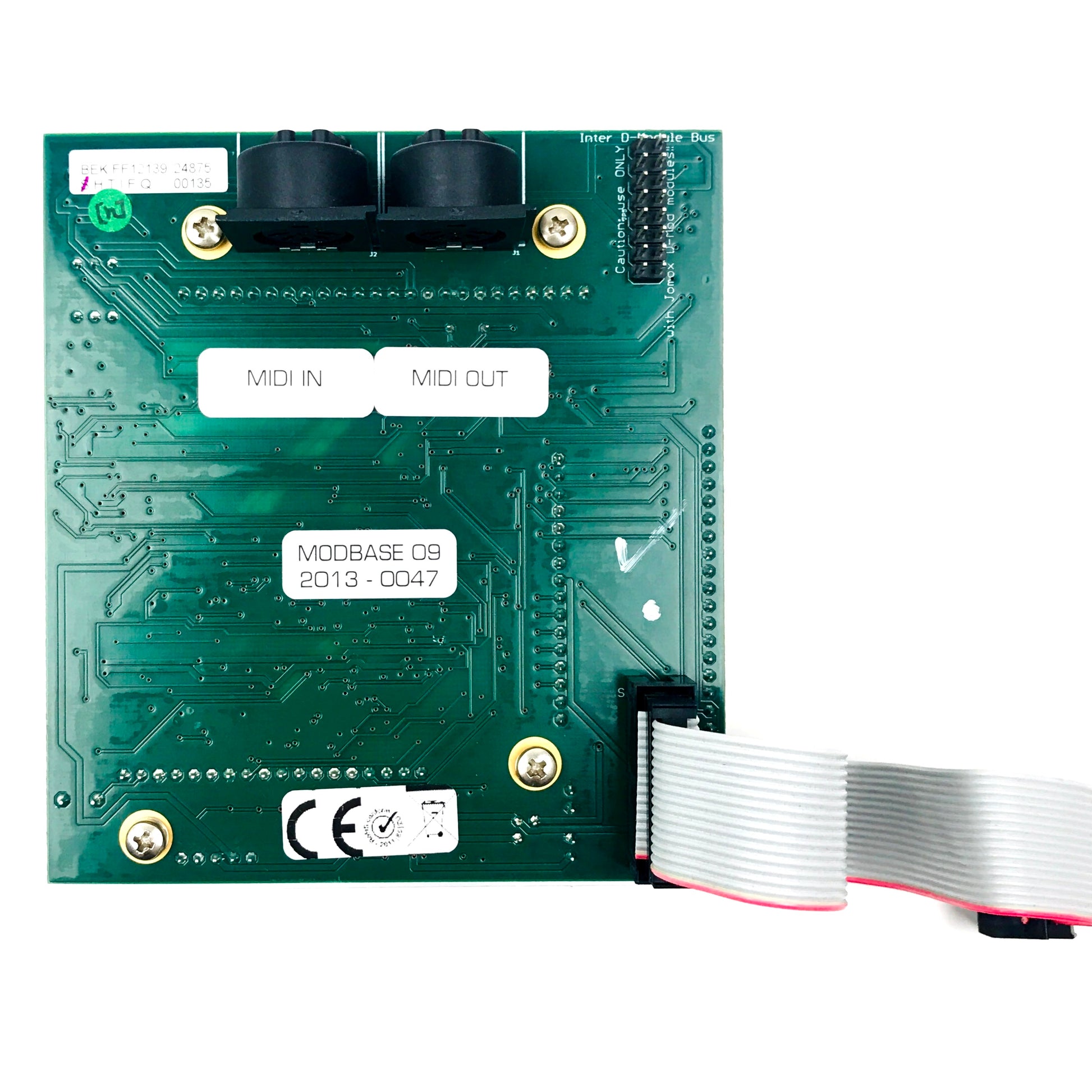

Also, to link the ModBase modules to our other products, they all have a Midi interface on the rear that can be wired within the rack case and being cascaded from one module to another.
The menu selection is paged by two-colored LEDs for both sides of the menu.
Two internal LFOs which both control the tuning of the kick drum VCO expand the sound spectrum once more.
All analog parameters are either storeable and controllable via Midi. The Midi notes control the pitch of the kick drum VCO.
Too, the modules are controllable via CV/Gate and via trigger pads for live drummers. With the trigger input, the threshold and velocity dependend dynamics can be adjusted.
Four routable CV inputs let all internal sound parameters (incl. LFOs and metallic noise) be controlled by CV sequencers. Every CV input provides an own programmable amount which can be negative too (i.e. subtracting the CV value from the internal value). The range goes from 0..5V.
