Quad Function & Trigger Source

Quad Function & Trigger Source

Regular price $ 299.00 USD
Regular price Sale price $ 299.00 USD
Sale Sold out
Shipping calculated at checkout.

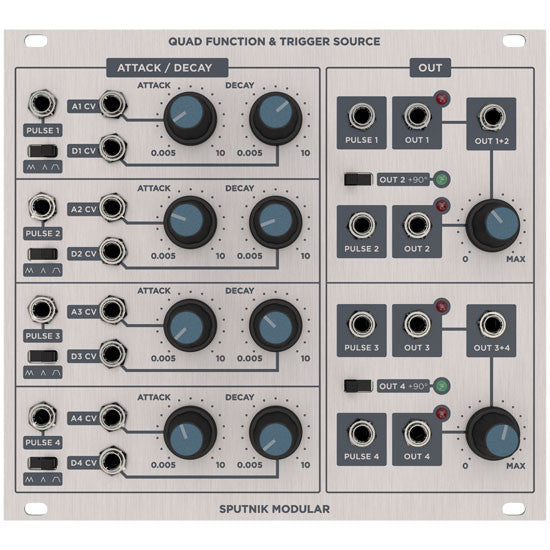

SPUTNIK QUAD FUNCTION & TRIGGER SOURCE provides four independent or paired (quadrature mode) function generators for creating complex envelopes.

ATTACK AND DECAY

  • 4 generators
  • The time range of each generator (.005 ヨ 10 seconds) can be controlled via CV pulse input jacks for both attack and decay + control knobs
  • 3-mode switch per generator: CYCLE (LFO), TRANSIENT, SUSTAINED

    OUTPUT

  • Each generator includes CV output + pulse output that generates a transient pulse at the end of the decay segment: if the generator is in CYCLE mode for instance, that cycle will repeat
  • QUADRATURE MODE SWITCH with green LED: when engaged, 1+2 (or 3+4) work in tandem + a shift of 90 degrees to each other. These pairs can then be linked creating complex ADSR envelopes.
  • Dedicated outputs for 1+2 and 3+4 as well as attenuator knobs for mixing channels.

    28hp +12V/-12V/+5V
