Ripples - Liquid Filter

Mutable Instruments

  • $ 19900

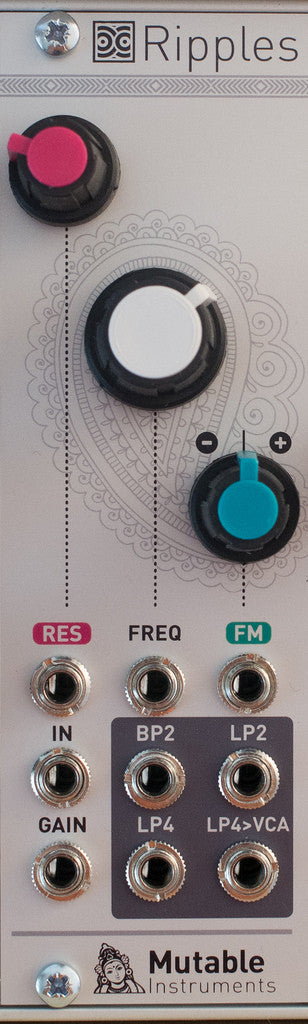

Ripples delivers a classic, big-sounding analog four-pole filter in a small 8-HP package, continuing Mutable Instrumentsメ lineage of warm and tasty filters started by the Shruthi SMR4 mkII and 4-Pole Mission.

3 filter modes are available: 2-pole band-pass, 2-pole low-pass, and 4-pole low-pass.

Self-oscillation is available for all modes and produces a clean sine-wave on the LP4 output. Unlike many classic 4-pole designs, this filter does not suffer from モloudness dropヤ when resonance is increased. The resonance loudness compensation circuit brings a slight tone coloration reminiscent of the Roland SH/Jupiter filters, with a very round and モliquidヤ resonance.

The 4-pole low-pass output is additionally sent to a VCA. This makes Ripples a good モfinal stageヤ module for an inexpensive/space-constrained subtractive synthesis synth voice.
