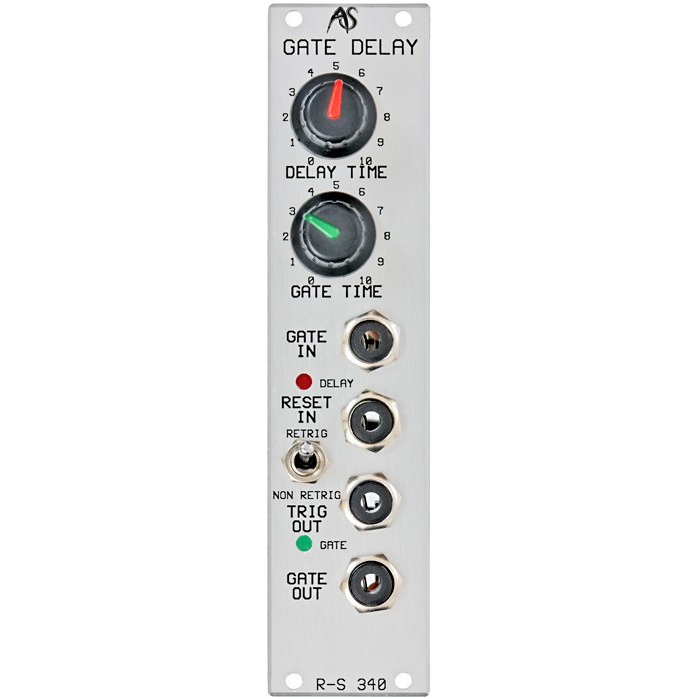

Analogue Systems RS-340 Gate Delay and Trigger

Analogue Systems RS-340 Gate Delay and Trigger

Regular price $ 143.95 USD
Regular price Sale price $ 143.95 USD
Sale Sold out
Shipping calculated at checkout.

IMPORTANT: Analogue Systems modules have their own power cable that may or may not be compatible with your eurorack case.  Click this link for an installation guide.

Gate delay and timing control

  • 6 hp
  • 3.5 inches Depth
  • 40 mA +/-12V

The rs340 is a multi-mode Gate Delay module and Shaper that recognizes any positive-going pulse exceeding +1V, and then generates a Trigger and a Gate of specified duration a user-defined time afterwards. Two LEDs offer visual feedback regarding the Gate status of the module. GATE IN
This accepts a positive-going pulse in the range +1V to +20V to initiate the Gate Delay cycle.

This determines the length of time between receipt of the input pulse, and the output Gate and Trigger. The minimum delay is 10mS. The maximum is 10S.

The GATE TIME allows you to determine the duration of the generated Gate pulse. The minimum duration is 10mS. The maximum is 10S.

Status LEDs
Two LEDs give a visual indication of the state of the RS340 at any moment. The green LED will be lit during the delay period. The Red LED will be lit while the delayed Gate is 'High'.

This outputs a +10V pulse whose duration is determined by the GATE TIME control.

The RESET IN accepts a positive-going pulse in the range +1V to +20V to reset the Gate Delay cycle. This terminates the current Delay or Gate (depending upon where the module is in the cycle) and returns to "wait" for the next input pulse.

The RS340 offers two modes of operation:

Provided that no RESET pulse is received, the module always completes the full Gate Delay cycle, regardless of any further inputs at the Gate IN socket.

The module terminates the existing cycle, resets, and starts a new cycle whenever a pulse is received at the GATE IN socket.

The Gate Delay Used As A Pulse Shaper
Because a Gate Delay responds to brief incoming pulses and creates Triggers and extended Gates from them, you can also use it to derive high quality Gates from poor gate signals such as the outputs from envelope followers, and click tracks replayed from tape. This is necessary when you want to reshape an audio pulse into a form that the synthesiser can use for timing or retriggering purposes. For more information on this subject, you should also refer to the chapter on the RS50 Shaper/Trigger/DC Shifter module.

Furthermore, you can use a Gate Delay to generate an extended but largely undelayed Gate whenever you present it with a Trigger or an audio click. You can use the output as a conventional Gate or as an extended Trigger. The latter will guard against false triggers caused by the abrupt end of an input click.
