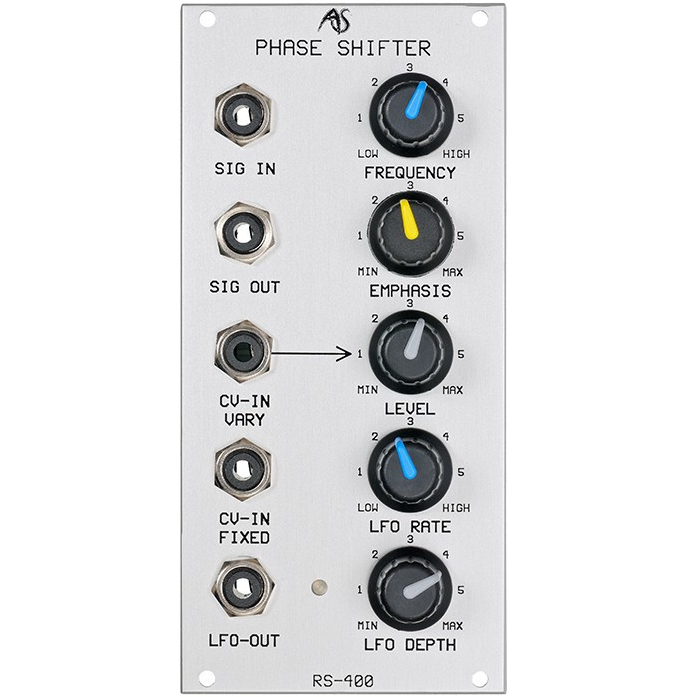

RS-400 Phase Shifter

IMPORTANT: Analogue Systems modules have their own power cable that may or may not be compatible with your eurorack case.  Click this link for an installation guide.

Voltage Controlled Phase Shifter

• 12 hp
• 3.5 inches Depth
• 25 mA +/-12V

The RS-400 is the famous Equinoxe phase shifter designed by Oakley Sound for Analogue Systems. It is a 4-stage phaser with an integrated LFO and CV inputs to control the notch frequencies. It offers variable resonance to create a wide range of phase-shifting effects.
