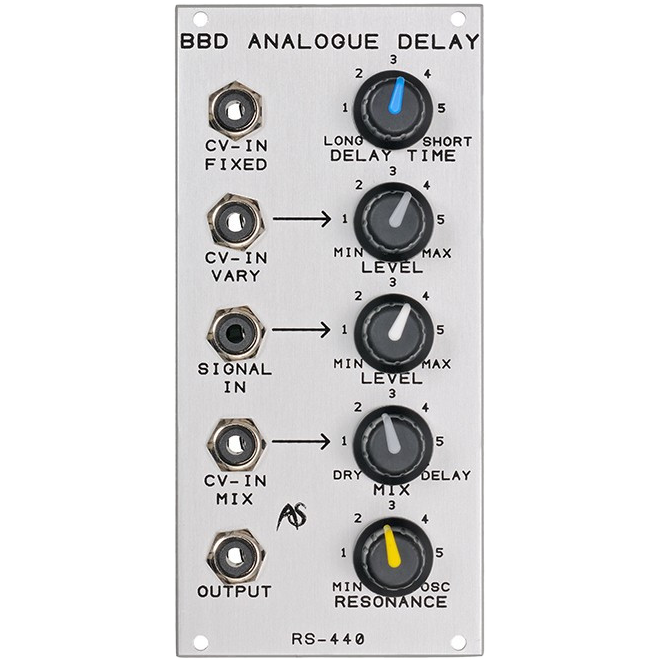

RS-440 BBD Analogue Delay

Analogue Systems

  • $ 29500


IMPORTANT: Analogue Systems modules have their own power cable that may or may not be compatible with your eurorack case.  Click this link for an installation guide.

Voltage Controlled Bucket-Brigade Delay

  • 12 hp
  • 2.5 inches depth
  • 5V required

Technical data 46.9kHz sampling rate, 22kHz bandwith. AD- and DA converters work with linear PWM and 24Bit, although the RS390 workis with internally throughout with 16Bit.

The delay time can be set manually fron three time ranges: 1.75ms - 100ms; 8.7ms - 500ms and 52ms - 3000ms which means you can create effects ranging from chorus, flanger to echos. The first repeat in the left channel happens after 1/2 of the delay time; the first repeat on the right channel after a further 1/2 delay time - this is perfect for creating ping pong delay.

The Repeat Depth parameter controls the feedback level. Ath high settings you can create infinite delays, but take care of the level and distortion. Repeat Damping is a low pass filter in the feedback loop that will dampen each repeat which matches the behaviour of a real echo.
