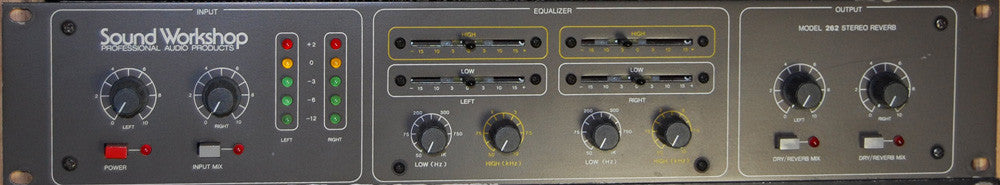

Sound Workshop 262 vintage Stereo Spring Reverb

• Balanced transformerless amplifier input circuitry
• Wide-range LED metering for optimum gain staging
• INPUT MIX for maximum flexibility without external patching
• Complete output mixing facilities provide full control of dry/reverberant ratio
• 2-band sweepable EQ on each channel
• Full drive level into 600 Ohms
• Optimized bi-FET preamps for ultra low noise performance
• Superior spring design yields incredibly smooth response and freedom from flutter
• Maximum isolation from acoustic coupling to the environment

Specifications:

Inputs
Impedance: 10k Ohms Balanced
Min level: -20dBV
Max Level: +20 dBV

Outputs
Source impedance: 47 Ohms
Nominal Level:

-2dBm into 600 Ohms
+4dBm balanced into 600 Ohms with optional transformers

Equalization
Low: +/- 15dB, sweepable (50Hz - 1kHz)
High: +/- 15dB, sweepable (500Hz - 10kHz)

Noise Level:
-80Bm (elec'l and steady state mch'l)
(20Hz-20kHz unweighted)

Decay Time
2.5 seconds nominal

Connectors
1/4-inch phone jacks

Power Required
117 Volts AC, 50/60 Hz
