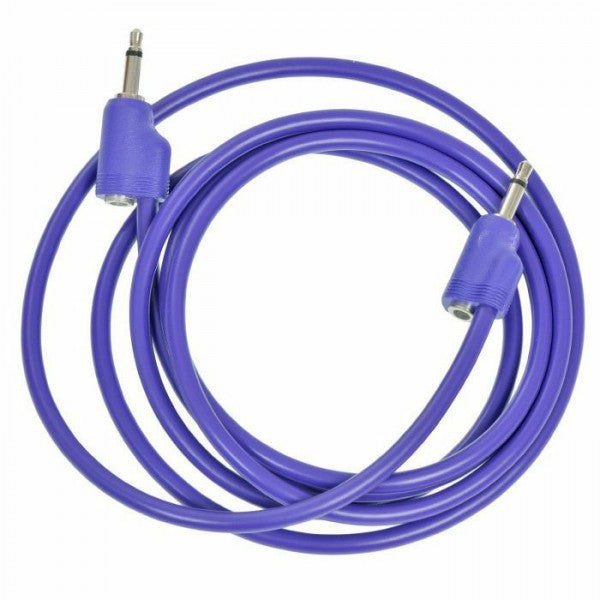

Stackcables - 150cm Purple
Stackcables are compatible with all audio gear that uses the standard 3.5mm / 1/8" jacks and plugs, this includes new and vintage synthesizers from all manufacturers. The Stackcables are not compatible with Switchcraft Tini-Jaxﾮ plugs but will work well with the Tini-Jaxﾮ jacks that are used by Buchla.
The Switchcraft Tini-Jaxﾮ were widely used in US made vintage audio equipment and synthesizers but are less common these days. These plugs can still be found with vintage synthesizers. Modular gear that still uses these jacks and plugs today is the Buchla system. The Stackcables uses an ultra miniature jack structure that was designed to be used with standard 1/8ﾔ 3.5mm plugs. On the Tini-Jaxﾮ plugs, the tip and sleeve are wider and have a dierent shape. Inserting a Tini-Jaxﾮ plug into the Stackcable may widen up the internal contact, and loosen its grip with standard 1/8ﾔ 3.5mm plugs. If you are not sure which type of plugs you are using, please refer to the picture on the next page.
For the long operational life of the Stackcable do not pull it out using the cable. Doing so over time will destroy the internal connection, creating unstable signal ow and eventually resulting in the cables demise. Stackables should only be pulled out using the molded head.
On some Stackables the metal jack will rotate. This is a normal outcome due to the specifics of their manufacturing process. They are fully functional and in no way impede or degrade the functionality of your Stackcable.
