Triple Video VCA

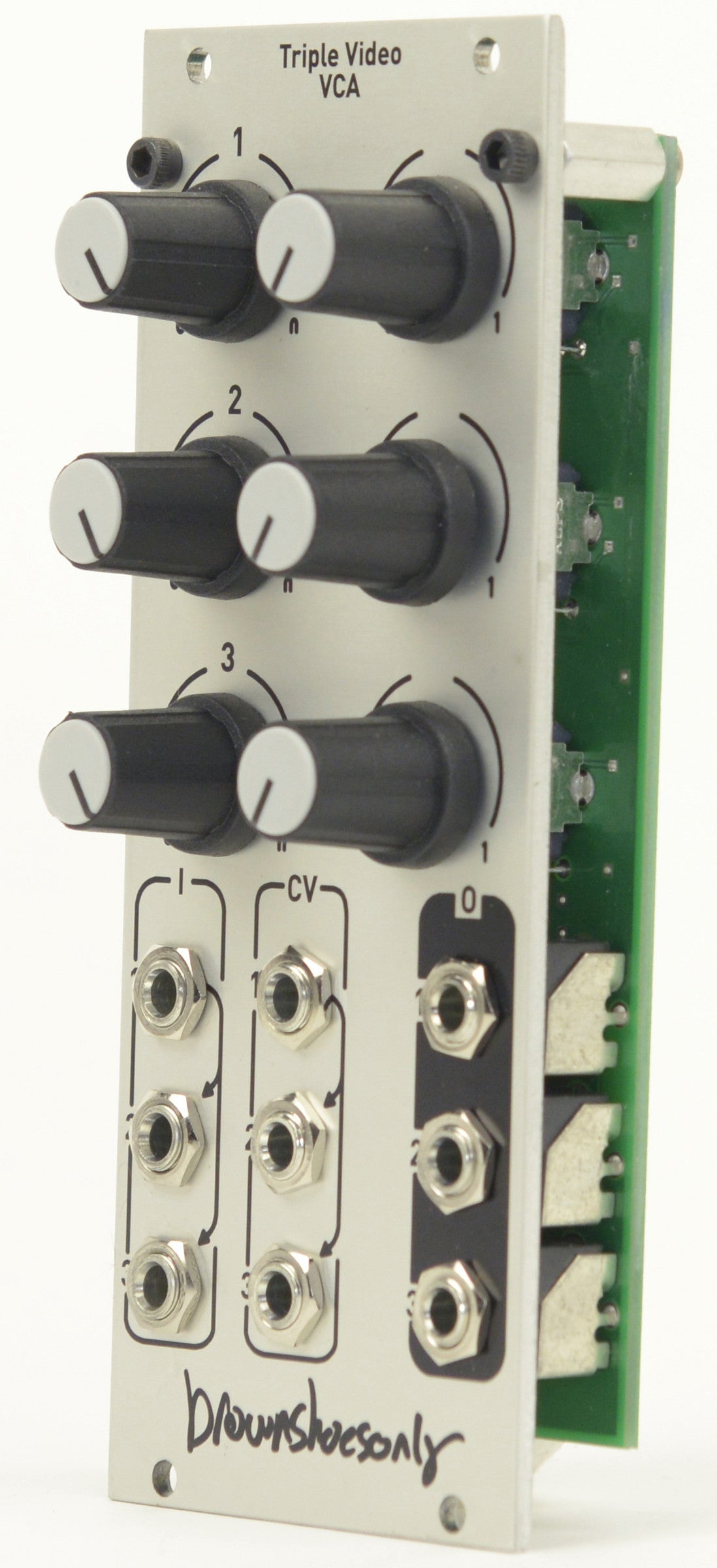

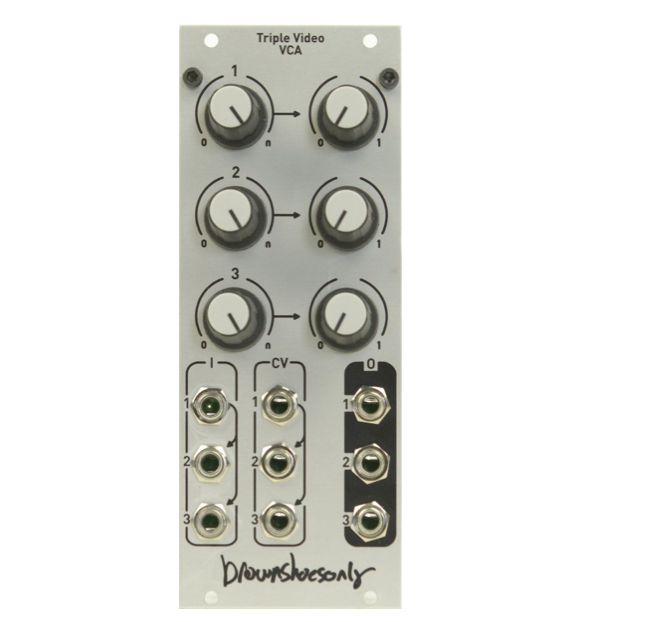

the brownshoesonly triple video vca is a 10 hp utility module designed within the voltage standards developed by lzx industries it features 3 individual high bandwidth vcas (video rate, so up to 40Mhz). cascaded jacks provide normalizations of the input signals and control voltage signals.
the module is on a single parallel board making it fit wonderfully in the slimmest of cases. expect a total depth of around 1.25" including the ribbon cable.
currently unverified but the power consumption is estimated around 70ma, well below the lzx recommendation for video synthesis systems of 10ma per hp.
- 10 HP
- 70 mA +12V
- 70 mA -12V
- 0 mA 5V
- 32 mm Depth
