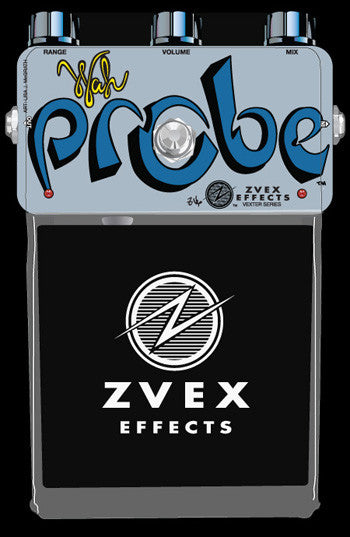

Wah Probe Vexter Series
Wah Probe Vexter Series
This effect is a natural continuation of the probe series... the Fuzz Factoryﾙ probe, the volume control/manual tremolo probe, and now a wah. Itﾒs probably exactly what you think it is: a theremin-style antenna controlling a wah, getting brighter as your foot approaches. It has three extra features, however. Thereﾒs a Super Hard-Onﾙ boost circuit in front of the wah, with a knob to set the exact level of boost for driving your wah sound. It can be turned up high enough to make the wah crack up a little for that ﾓsomethingﾒs gonna blowﾔ sound. It gets pretty darn loud! There is also a ﾓMixﾔ knob for dialing in the desired wet/dry mix of the effect, and a ﾓRangeﾔ knob for controlling/limiting the ultra-bright upper range of this circuit.
HOW IT WORKS
The probe circuit generates a small (one or two inches high) ﾓbubbleﾔ of RF energy at about a million cycles per second above the antenna plate. As your foot or hand (or any wet or metallic object, for that matter) approaches the copper plate, the RF field is disturbed and the circuit reacts by increasing the brightness of an LED, which drives a photoresistive cell and controls the Z. Vex wah circuit. The wah circuit is actually the Seek-Wahﾙ sound circuit without the sequencer control. The only difference is the boost circuit in this Wah Probeﾙ model.
Determines how bright the wah can get. Turn this all the way clockwise for maximum brightness (this is the setting in the original Wah Probeﾙ). Turning this knob counter-clockwise makes the range of the wah akin to more traditional, vocal ranges.
This is the volume level of the ﾓdriveﾔ knob... just set it so that when you kick on the wah itﾒs doing its stuff at the right intensity. It goes from slightly lower than the normal guitar volume to completely bonkers when turned up all the way. I personally donﾒt think itﾒs necessary to turn it up all the way, in fact, it seems to pretty much obliterate the wah sound, but, to each his own. Abuse those transistors, please!
Controls the wet/dry mix of the effect. Turn all the way clockwise for pure wah, or all the way counter-clockwise for just the unaffected signal. Everything in between is a mixture of the two signals. This is great for stacking with fuzz or distortion. Bass players will also like this.
There is also a trimmer on the bottom of the pedal that controls the RF field. If you turn it in the direction of the arrow (to the left) it will make the probe circuit more sensitive and set the ﾓbottomﾔ setting of the wah higher and higher. Itﾒs best to hold the pedal completely upside down so that the cords are dangling away from the antenna, with your hand and arm completely away from the antenna, and strum your guitarﾒs open strings (you probably have to have it on a stand or strapped on) thru the Wah Probeﾙ. Gently adjust the RF pot with a tiny screwdriver in the direction of the arrow until you hear the wah get to the level youﾒd like it to be when you are not putting your foot near it. Thereﾒs a region where the sound of the guitar is kind of ﾓmuffledﾔ and the wah kicks in after your foot gets near the pedal, which is how I ship the unit. If you like the wah to be partway cocked into the lower wah region just park the adjustment right where you like it. As you get closer to the unit, it will wah higher.
BATTERY CHANGE & POWER SUPPLY
The Wah Probeﾙ can be powered with a 9V battery or any standard filtered/regulated musical 9VDC power supply with a Boss-style connector (negative-tip barrel connector). Naturally, a nice alkaline cell will last quite a bit longer than a carbon-zinc one, but some people are completely sold on the sound of the higher voltage output from a carbon-zinc unit when it is brand new. To change the battery, unscrew the four screws on the underside of the painted box. Carefully lift out the old battery and replace it with a new one exactly as it was installed, with the clip toward the right as you look at the bottom when the plastic footpedal part is aiming toward you and the painted box is further away. Does that make sense?
