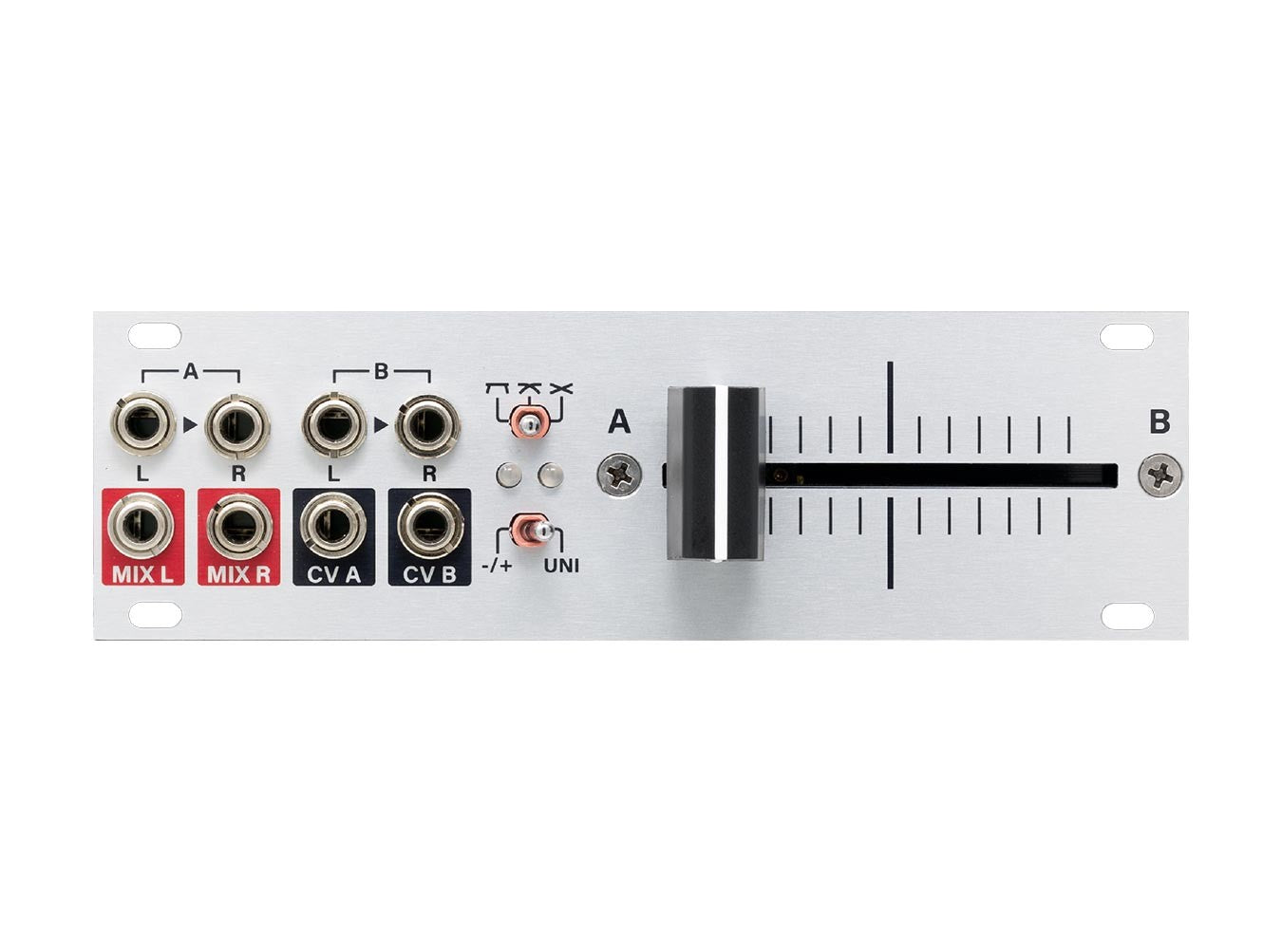

Intellijel Xfade 1U

Stereo DJ style crossfader and controller

Xfade 1U is a classic DJ-style stereo crossfader, with a few extra tricks up its sleeve. The  ‘A’ and ‘B’ sides both have L+R inputs. The crossfader blends two stereo input signals together — crossfading one into the other depending on the position of the slider and the selected Xfade Shape. The blended output appears at the MIX L and MIX R output jacks.

In addition, Xfade 1U can be used as a modulation source for controlling other modules, since the crossfader also outputs control voltages from the CV A and CV B jacks. A switch determines whether these voltages are unipolar (crossfading from 0V to 5V; and 5V to 0V), or bipolar (crossfading from -5V to +5V; and +5V to -5V). The two LEDs indicate the polarity and relative levels of the CV A and CV B signals.

Xfade 1U uses a precision Innofader™ crossfader submodule, with moving capacitance technology for smooth (almost frictionless) and precise control. This is the same part found on many high-end DJ mixers.

Features:

• Smooth and ultra-low friction Innofader™ Mini-Innofader module with moving capacitance technology
• Three crossfade shapes: DJ cut,  Constant Power and Linear
• Stereo or Mono operation
• DC coupled inputs and outputs
• Unipolar or Bipolar CV outputs
• Output is chainable to Intellijel Outs, Mixup and Stereo Mixer 1U modules via included 3-pin cable

Width - 26HP

Depth - 38mm

Power - 48mA @ +12v

              41mA @ -12v
